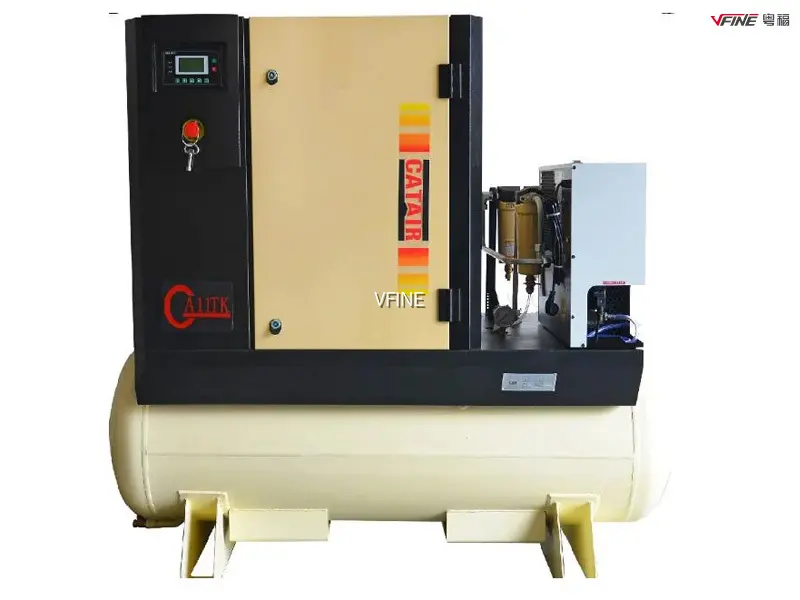

High-Quality Laser Machine Air Compressor System
Product advantages
Our high-quality laser machine air compressor system is designed with precision engineering, ensuring reliable and efficient performance. The brand story behind our product is one of innovation and commitment to excellence in providing top-tier machinery solutions. This compressor system is equipped with advanced features such as noise reduction technology, durable construction, and superior air output, making it the ideal choice for industrial applications.
We serve
At our company, we are dedicated to serving our customers with the highest quality products, such as our High-Quality Laser Machine Air Compressor System. Our commitment to excellence is reflected in the exceptional performance and durability of this machine. We understand the importance of reliability in your operations, which is why we provide a compressor system that is not only efficient but also built to last. With our product, you can trust that your laser machine will always have the necessary air supply to function at its best. Trust us to serve you with the best in the industry.
Enterprise core strength
At Our Company, we are dedicated to providing high-quality laser machine air compressor systems that meet the needs of our customers. With a focus on efficiency and reliability, our products are designed to ensure optimal performance for various industrial applications. We serve our customers by offering top-notch customer service, technical support, and quick delivery times. Our team of experts is always ready to assist with any inquiries or concerns, guaranteeing a seamless purchasing experience. Trust us to serve you with the best products and services that will exceed your expectations. Experience the difference with Our Company.
It is one of the hot-selling products of Zhongshan Vfine Machinery Co., Ltd. The Catair Air Compressor System Laser Machine Air Supply Ca-11tk Ca 1.2-30h Ca15tk Cat-1.0/30kg launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. In the future, Zhongshan Vfine Machinery Co., Ltd will focus on technological innovation, continuously improve service quality and develop better products, and is committed to providing customers with products and services that exceed expectations.
| Model NO. | CA-11TK | Cooling System | Air Cooling |
| Cylinder Arrangement | Balanced Opposed Arrangement | Cylinder Position | Angular |
| Structure Type | Open Type | Compress Level | Multistage |
| Refrigerant Type | Ammonia | Product | Air Compressor System |
| Transport Package | Wooden Package | Specification | 2T |
| Trademark | vfine | Origin | China |
| HS Code | 8414100090 | Production Capacity | 100sets/Year |
Product Description
CA 1.2-30H CAT-1.0/30KG
CA-11TK CA15TK
Specifications
machine:air compressor
2stage piston type air cooled compressor
High pressure part(source air)
Specification
| power | HP | 11KW |
| capacity | m3/min | 1.08 |
| Inlet air temp. | ºC | ≤35 |
| Exhaust air temp. | ºC | ≤60 (after cooling) |
| Full load air pressure | Mpa | 1.55 |
| voltage | V/Hz/Ph | 380/50/3 |
| Cooling way | Air type | |
| motor | IP54 | |
| Insulation level | F Level | |
| Motor quantity | set | 1 |
| Machine size | Mm | 1730*780*1850 |

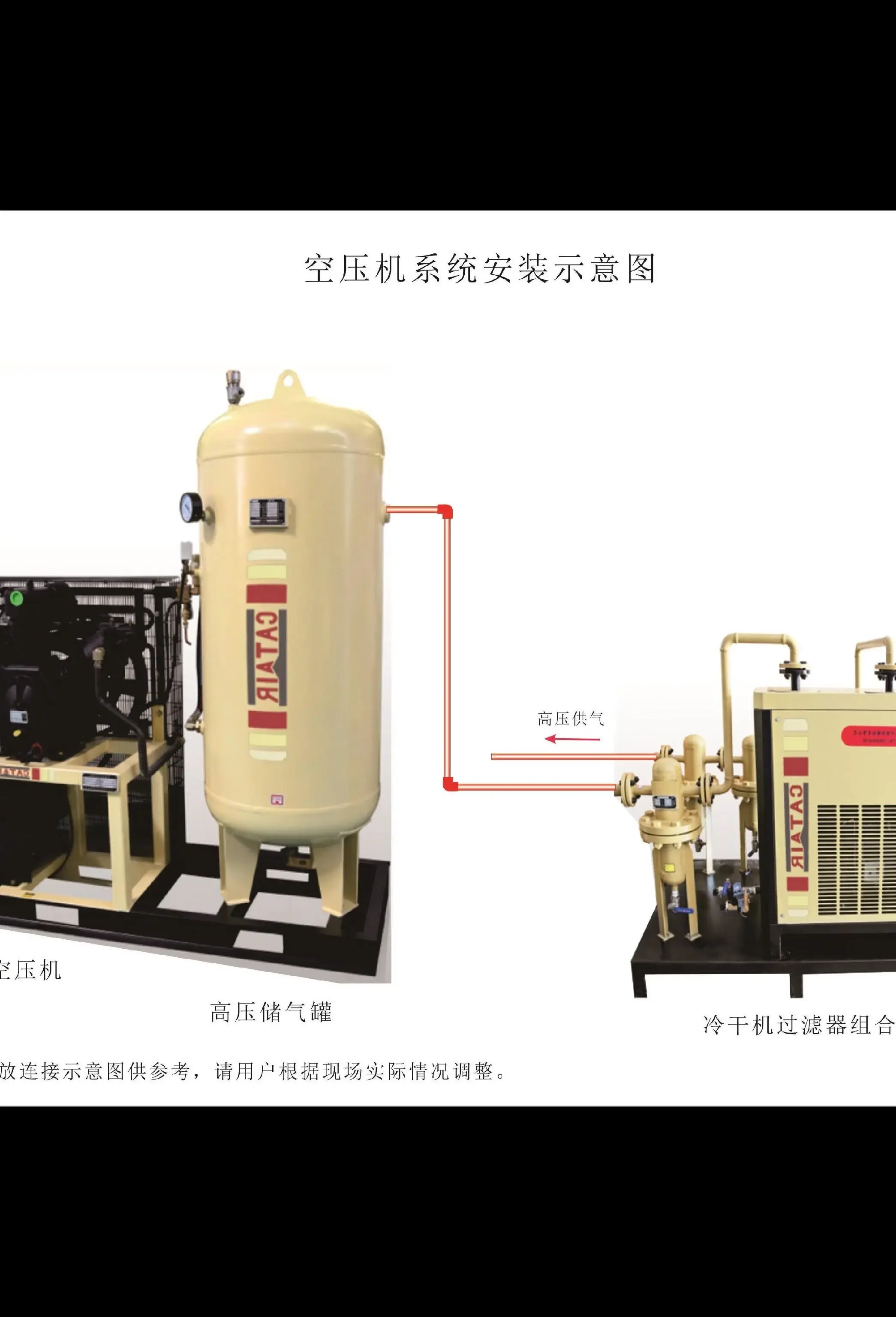

High pressure part(source air)
| item | Description and suggestion |
| Air compressor Air pressure:1.55Mpa | Produce the high pressure air |
| tank Air pressure:1.6 Mpa | Storage of the high pressure air, also as the buffer to cool the hot air; the water and dirt would be left in tank, so that to reduce load of air treatment system. |
| High pressure air dryer Air pressure:1.6Mpa | The oil and water within the compress air would be cooled to liquid status, the solid dirt together with the cold liquid will be exhausted out from the automatic drain, then the clean air can be provide to the production line. |
| Pre-filter Air pressure:1.6Mpa solid≤3 um Oil left≤5ppm | Clean the big solid dirt in the compress air. |
| Post filter Air pressure:1.6Mpa solid≤1 um Oil left≤1ppm | Clean the medium size solid dirt in the compress air |
| Precise filter Air pressure:1.6Mpa solid≤0.01 um Oil left≤0.01ppm | Clean all the solid dirt in the compress air |
Specifications
machine:air compressor
Model:CA-11TK
Specification
| power | HP | 11KW |
| capacity | m3/min | 1.08 |
| Inlet air temp. | ºC | ≤35 |
| Exhaust air temp. | ºC | ≤60 (after cooling) |
| Full load air pressure | Mpa | 1.55 |
| voltage | V/Hz/Ph | 380/50/3 |
| Cooling way | Air type | |
| motor | IP54 | |
| Insulation level | F Level | |
| Motor quantity | set | 1 |
| Machine size | Mm | 1730*780*1850 |
Tank specifications
| capacity | M3/min | 0.4 |
| Max. air pressure | Mpa | 1.6 |
| Max air temp. inlet | ºC | <100 |
| Size L*W*H | Mm | |
| Max workshop temp. | ºC | 38 |
Air treatment system
1, dryer
Model: 2m3/1.6Mpa
specification
| capacity | 2Nm3/min | |
| Max inlet pressure | 1.6Mpa | |
| Inlet temp. | ≤80ºC | |
| Dew point | 10-15ºC | |
| Environment temp. | <46ºC | |
| Recycle water | ||
| coolant | R22 | |
| power | 0.8kw | |
| Cooling type | Air type | |
| Inlet Water pressure | ||
| Inlet water | ||
| Coolant compressor | Japan | Panasonic |
| drain | vavle | 3pc Netherlands valve |
| power | 220V/50Hz | |

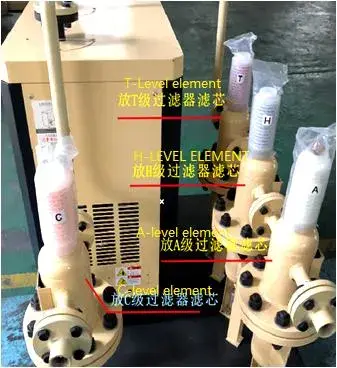

Pre-filter
| capacity | 2.0m3/min |
| Max inlet pressure | 1.6MPa |
| Inlet temp. | ≤60ºC |
| Environment temp. | ≤45ºC |
| Filter precision | ≤3μm |
| Oil in Outlet air | 5ppm (w) |
| Pressure drop | dry drop ≤0.007MPa, wet drop ≤ 0.014MPa |
| Filter element | 6000-8000hour |
| structure | Filter element |
| connector | DN20 threaded fittings |
| drain | Drain includes, exhaust automaticly |
(2)post-filter
| capacity | 2.0m3/min |
| Max inlet pressure | 1.6MPa |
| Inlet temp. | ≤60ºC |
| Environment temp. | ≤45ºC |
| Filter precision | ≤1μm |
| Oil in Outlet air | 1ppm (w) |
| Pressure drop | dry drop ≤0.007MPa,wet drop ≤ 0.014MPa |
| Filter element | 6000-8000h |
| structure | Filter element |
| drain | Drain includes, exhaust automaticly |
| connector | DN20 threaded fittings |
(3)precise filter
| capacity | 2.0m3/min |
| Max inlet pressure | 1.6MPa |
| Inlet temp. | ≤60ºC |
| Environment temp. | ≤45ºC |
| Filter precision | ≤0.01μm |
| Oil in Outlet air | 0.01ppm (w) |
| Pressure drop | dry drop ≤0.007MPa,wet drop ≤ 0.014MPa |
| Filter element | 6000-8000h |
| structure | Filter element |
| drain | Drain includes, exhaust automaticly |
| connector | DN20 threaded fittings |

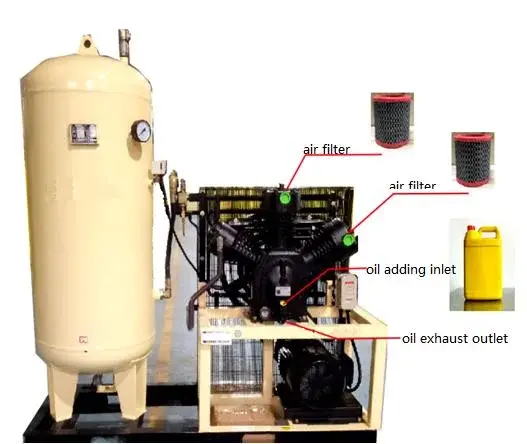

Compressor, motor, V-belt with cover, exhaust valve, manual water drain, gauge
