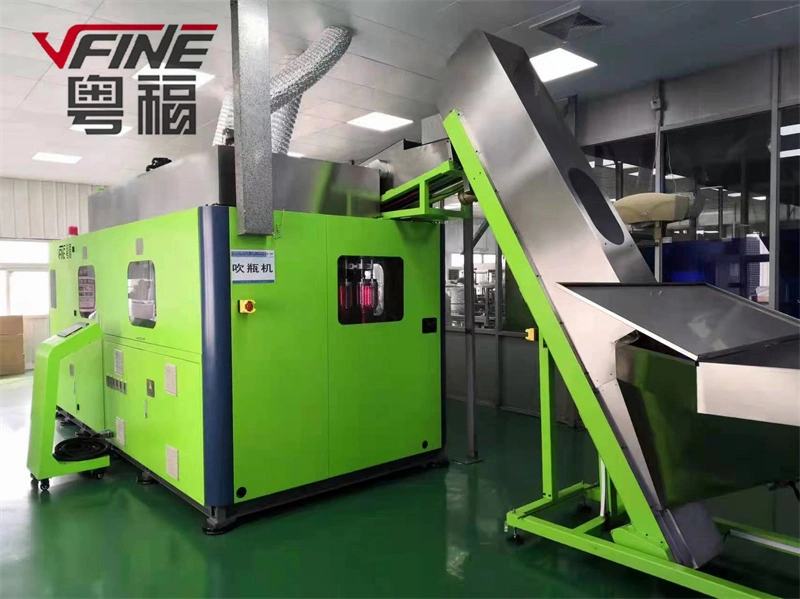

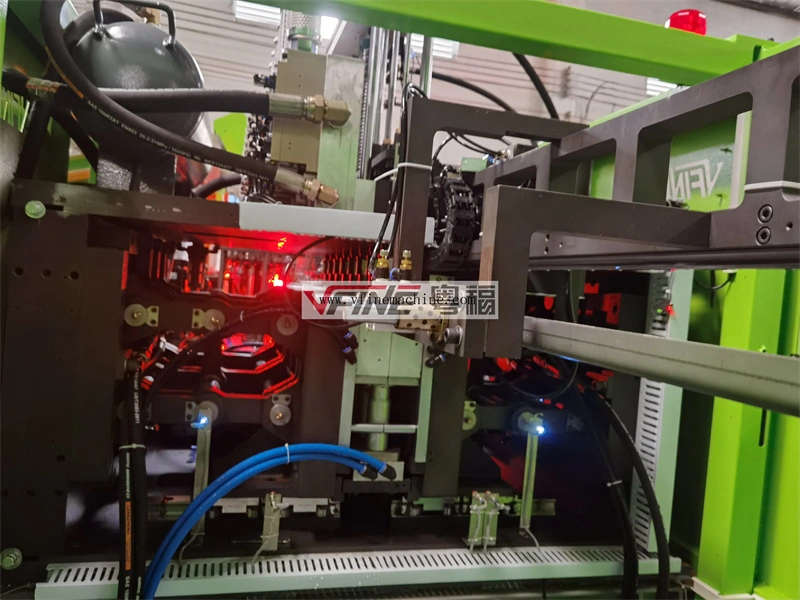

top view of vfine pet blowing machine

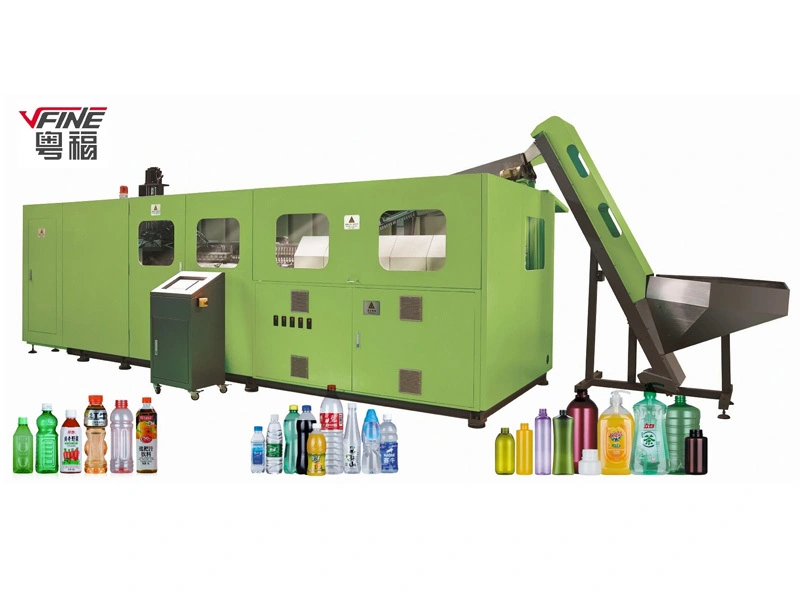

model: YF-L10E
the machine is with full servo, intensively heating, it intergrate the advantage of PET linear blow molding machine and rotary blowing machine. high efficience, high quality, smart design for worker's operation, and durable.
10-cavity, linear stretch blowing molding machine
Output: 18000bph
Max. Volume: 0.6L


(2)application scope
Suitable for producing PET water bottle, carbonate bottle, middle temperature filling bottle etc.

L-series Vfine blowing machine features

1. save energy :
   The preform heating and blowing are on separated section, so that it can save the waiting time of each unit. The preforms are heated intensively, as the rotary machine heating type, improve the heating efficiency. Meanwhile, the high pressure air can saved by air recycling system, for the pre-blow or low pressure air supply, save energy.

2.  Save space:
   The infeeding system is inside the machine, the heating structure save the preform pitch distance, save the space.

3.  high efficiency:
   We improve about 20% output, in the situation of low down the machine energy consumption, improve the overall energy utilization.

4.  Infeeding system:
   The infeeding system is in single channel with less sensors for better infeeding.

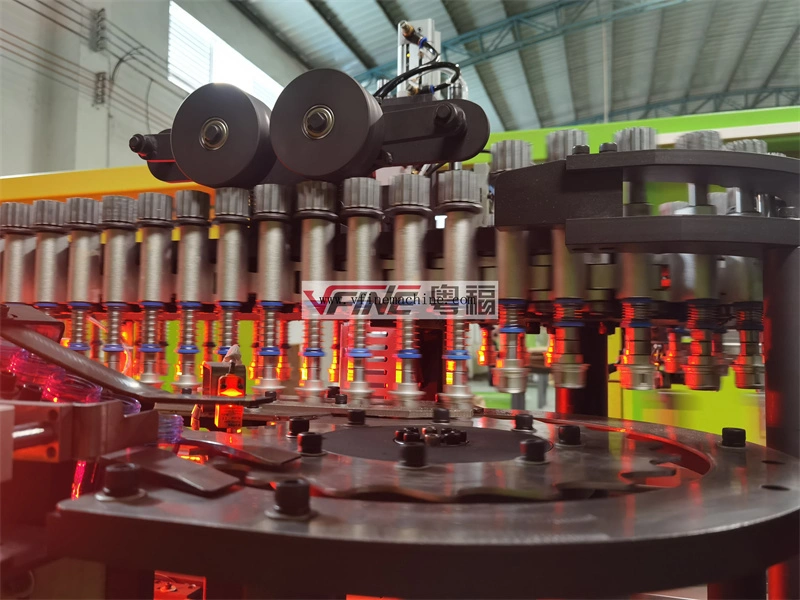

5. Heating system:

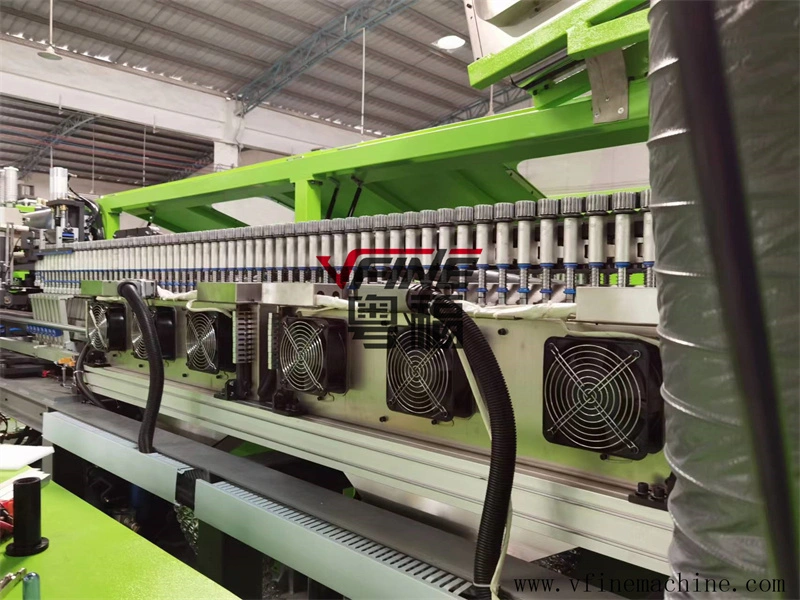

   Preforms are heated intensively, the cooling device and the cross ventilation protect the preform neck from out of shape, improve the energy utilization, and heating efficiency.

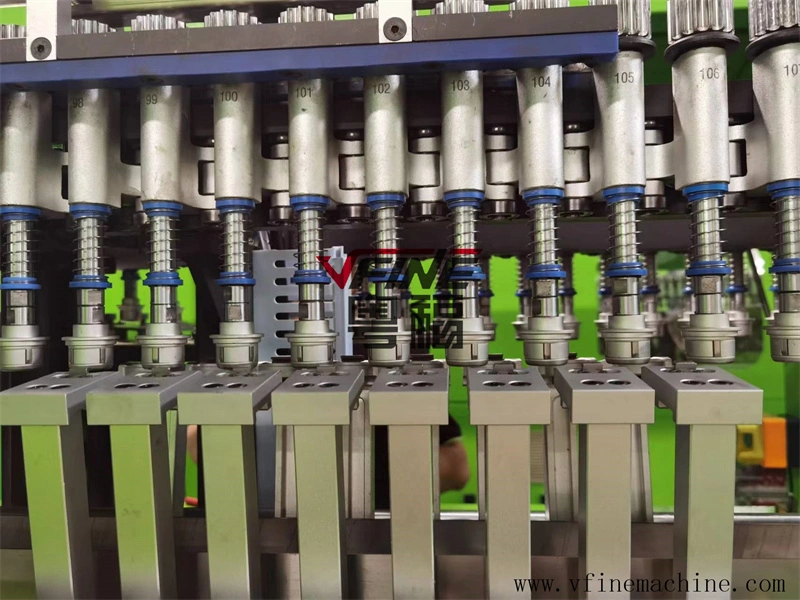

6. Transfer unit: The variable pitch device is controlled by servo for stable and accurate transferring.

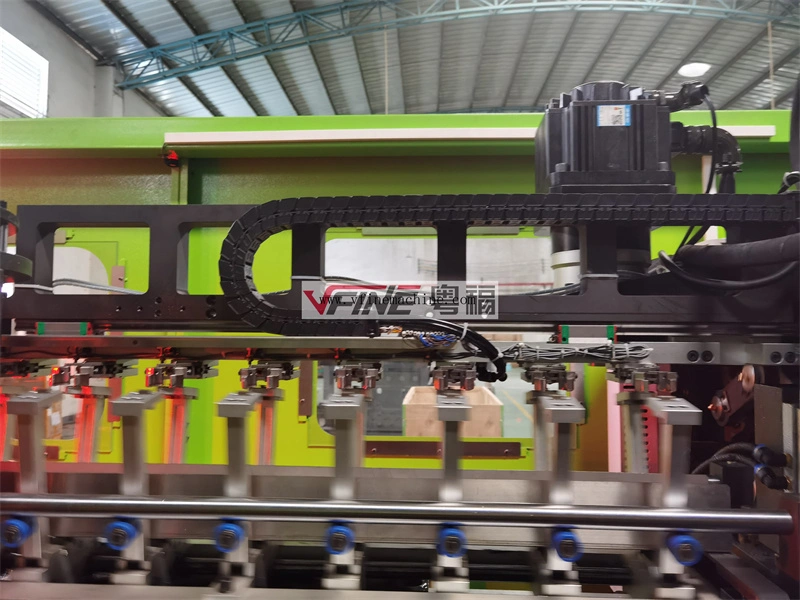

7. Clamping unit: The clamping unit is controlled by servo motor to ensure the synchronization, stable running and precise location.

8. High pressure air recycle system:  The high pressure air recycle system save the high pressure to the tank, reduce the noise and save energy lost.

(4) Vfine blowing machine YF-L10E specifications

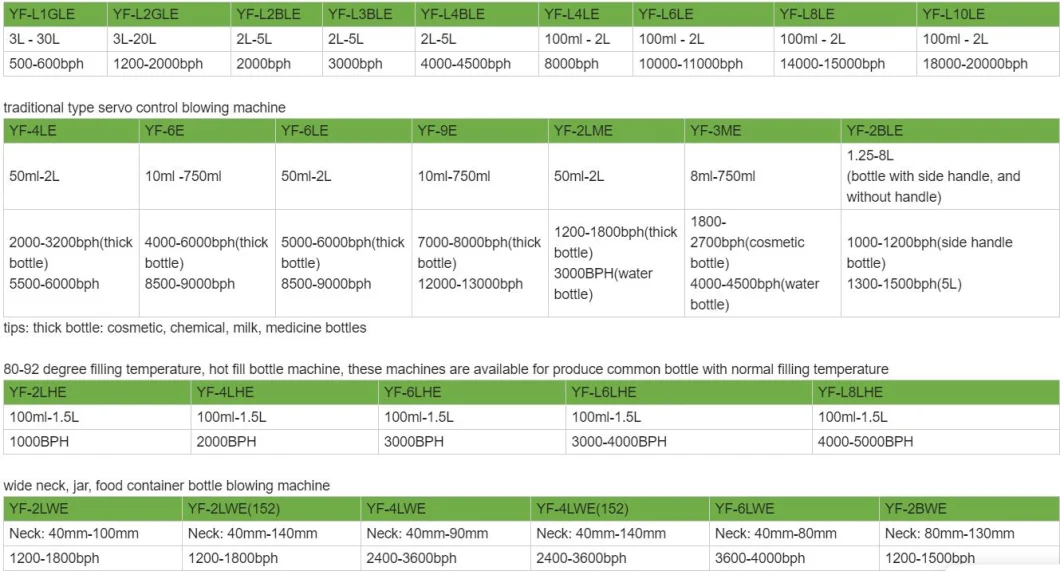

VFINE MACHINERY PRODUCT LIST SHORT VIEW

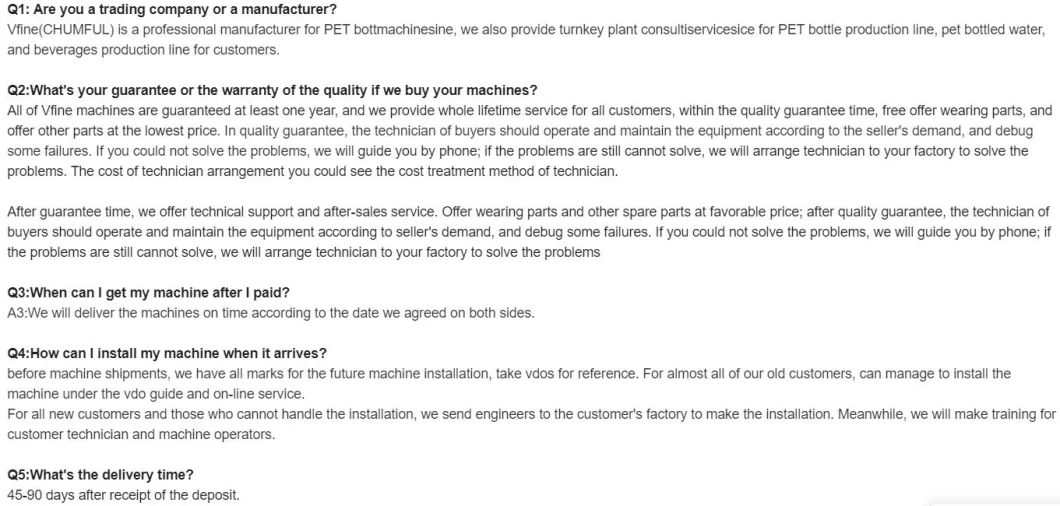

We have a professtional after-sale service team, before machine arrive, we will give consulting service about the machine place, eletricity, and water prepare works. after machine arrive in customer factory, we also send engineer for installation, and make training for customer's engineer, customer should take charge of the engineer travel cost, board and lodging and labor cost.

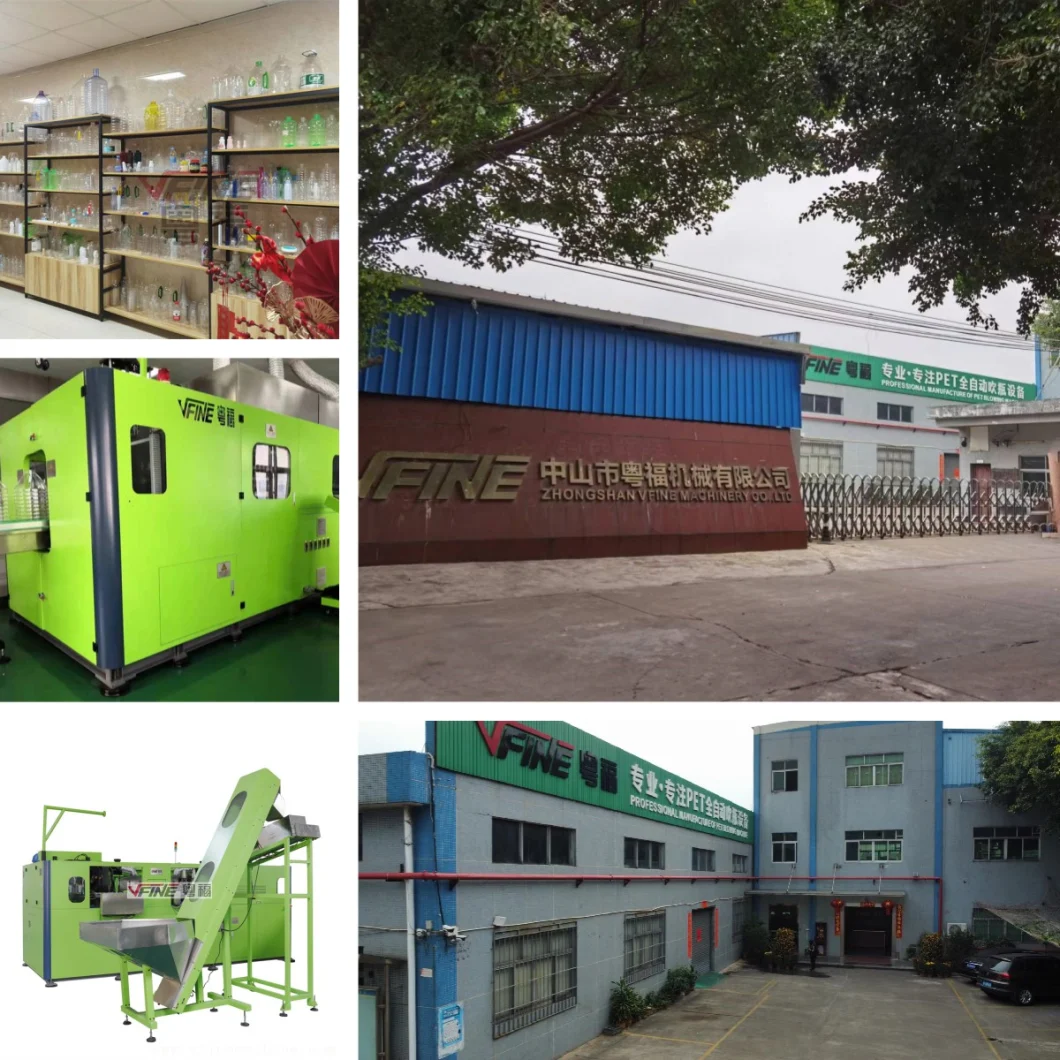

Zhongshan chumful machinery co ltd is the one branch of Zhongshan Vfine machinery co ltd, which is a professional manufacturer of PET bottle blowing machines, that integrates the R&D, production, and sales. We also provide turkey project service of water bottle complete line.Since the development and design of the first generation linear automatic stretch blow molding machine, Vfine's technical team has focused in the PET market for 20 years. We've successfully supplied machines to many world-famous brands.
Not only blow machine, we also provide turnkey project service of pet bottle design, PET bottling equipment line, PET bottle filling, and packing.
