Fully Automatic Plastic PET Bottle Blow Moulding Manufacturing Machine 6 10 Cavity
Featuring 6 and 10 cavity configurations, this automatic PET bottle blow moulding machine adopts mature two-step stretch blow technology. Precise temperature control avoids material degradation, while optimized circulating cooling shortens cycle time. The rigid mold clamping structure and efficient water cooling system deliver uniform wall thickness and flawless finish. Equipped with intelligent PLC control and energy-saving pneumatic design, it runs stably for long shifts.
The 6/10-cavity fully automatic PET bottle blowing machine is engineered for high-volume commercial production. It stably outputs 8,500–9,000 BPH (6 cavities) and 18,000–20,000 BPH (10 cavities), compatible with 50ml–2L PET bottles for drinks, cosmetics and medical supplies. Full servo system ensures accurate molding, while infrared heating delivers consistent preform temperature. The oil-free design fully satisfies food-grade hygiene norms for long-term reliable running.
| Model NO. | YF-L10E | Making Method of Parison | Stretch Blow |
| Automation | Automatic | Computerized | Computerized |
| Certification | CE, ISO9001:2008 | After-sales Service | Includes |
| Product | Bottle Making Machine | Item | Bottle Making Machine Price |
| Item 3 | Pet Bottle Machinery | Item 4 | Pet Bottle Machinery Price |
| Transport Package | Wooden | Specification | 7m*2m*2.5m(l*w*h) |
| Trademark | vfine | Origin | China |
| HS Code | 8477109000 | Production Capacity | 50-100set/Year |
| Package size per unit product | 700.00cm * 200.00cm * 230.00cm | Gross weight per unit product | 9000.000kg |
Product Description
machine Output: 18000bph
Max. Volume: 50ml -2 L
Full servo control for preform infeed, preform transfer, variable pitch, molding, stretching
No need low pressure air for the blowing machine
(2)application scope
Suitable for producing PET water bottle, carbonate bottle, middle temperature filling bottle, medicine bottle, cosmetic bottle, cooking oil bottle etc.
Advantage of YF-L10LE Series PET Plastic Bottle Moulding Machine
1.Save energy : The preform heating and blowing are on separated section, so that it can save the waiting time of each unit. The preforms are heated intensively, as the rotary machine heating type, improve the heating efficiency. Meanwhile, the high pressure air can saved by air recycling system, for the pre-blow or low pressure air supply, save energy.
2. Save space: The infeeding system is inside the machine, the heating structure save the preform pitch distance, save the space.
3.High efficiency: We improve about 30% output, in the situation of low down the machine energy consumption, improve the overall energy utilization.
4. Infeeding system: The infeeding system is in single channel with less sensors for better infeeding.

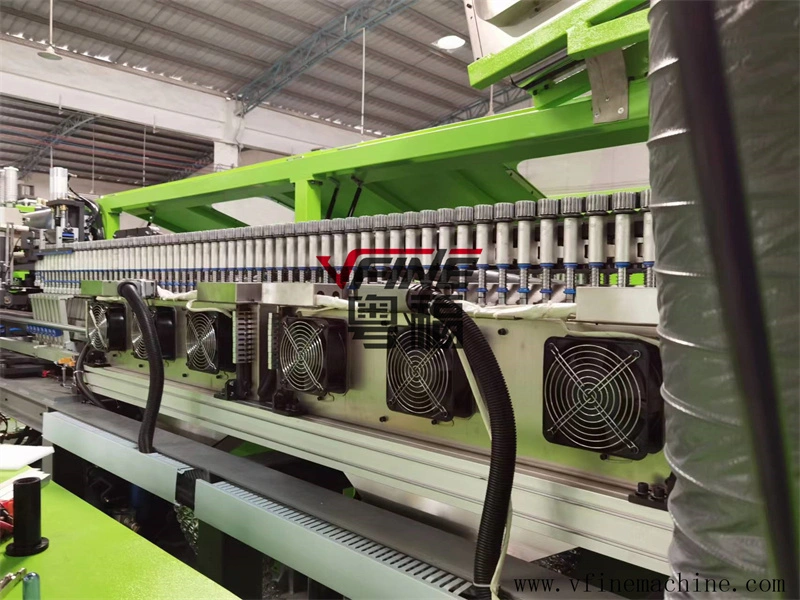

5. Heating system: Preforms are heated intensively, the cooling device and the cross ventilation protect the preform neck from out of shape, improve the energy utilization, and heating efficiency.

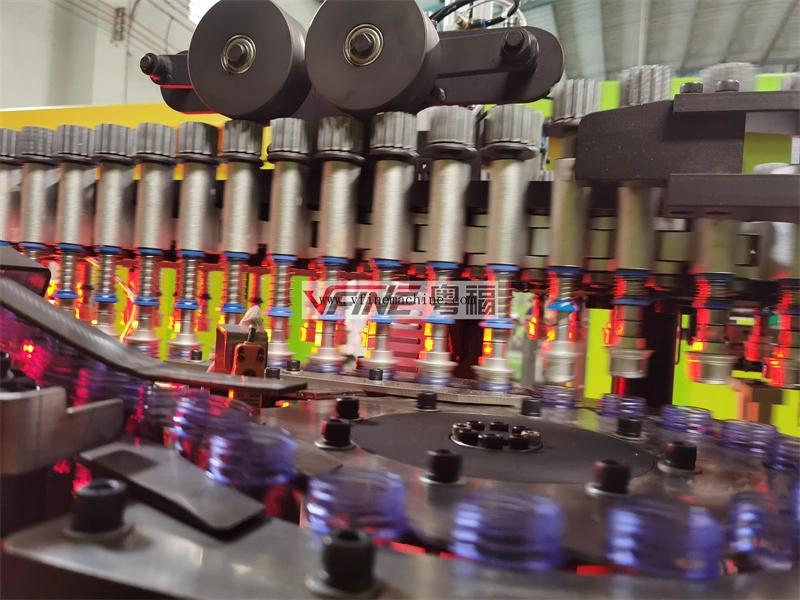

6. Transfer unit: The variable pitch device is controlled by servo for stable and accurate transferring.
7. Clamping unit: The clamping unit is controlled by servo motor to ensure the synchronization, stable running and precise location.
8. High pressure air recycle system: The high pressure air recycle system save the high pressure to the tank, reduce the noise and save energy lost.

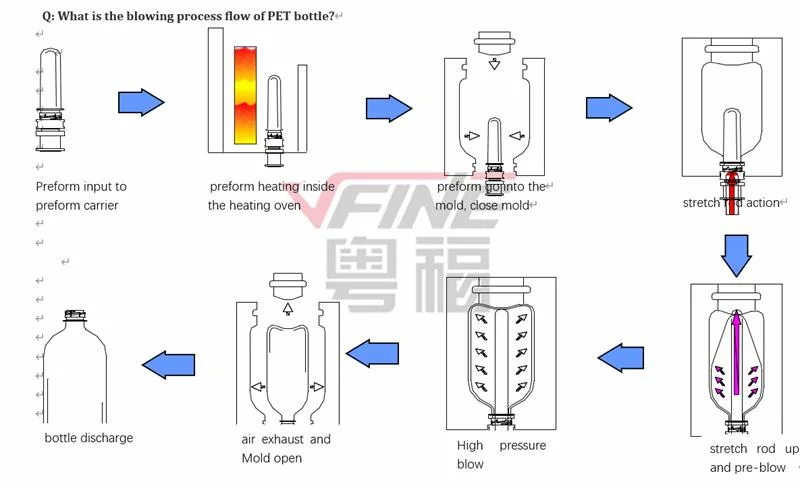

PET Bottle Blow Moulding Machine Process Flow Chart
| MODEL | YF-L10LE |
| Bottle Volumn | 50-2000ml |
| Cavity number | 10 cavities |
| output | 18000-20000BPH |
| Machine size | 6700*2000*2500 |
| bottle type | all kinds of PET bottle, size from 50ml-2000ml |
| low pressure air | no need |
| high pressure air | 18000ltr/min |
| air pressure | 35kg |
| Machine weight | 9000kg |
We have a professtional after-sale service team, before machine arrive, we will give consulting service about the machine place, eletricity, and water prepare works. after machine arrive in customer factory, we also send engineer for installation, and make training for customer's engineer, customer should take charge of the engineer travel cost, board and lodging and labor cost.
* More 20year experience in PET bottle blowing and package.
* Professional manufacturer of high quality PET machine.
* Consultor of complete line service for PET bottle equipments.
* Provide professional Productor design
