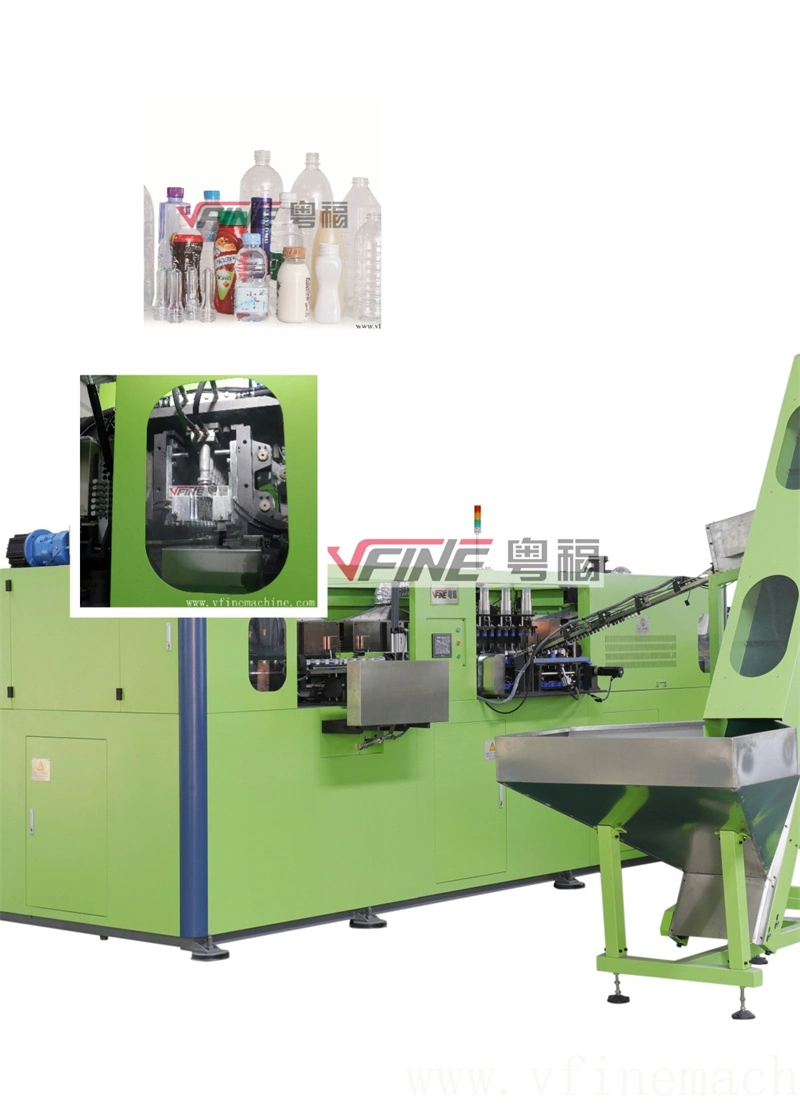

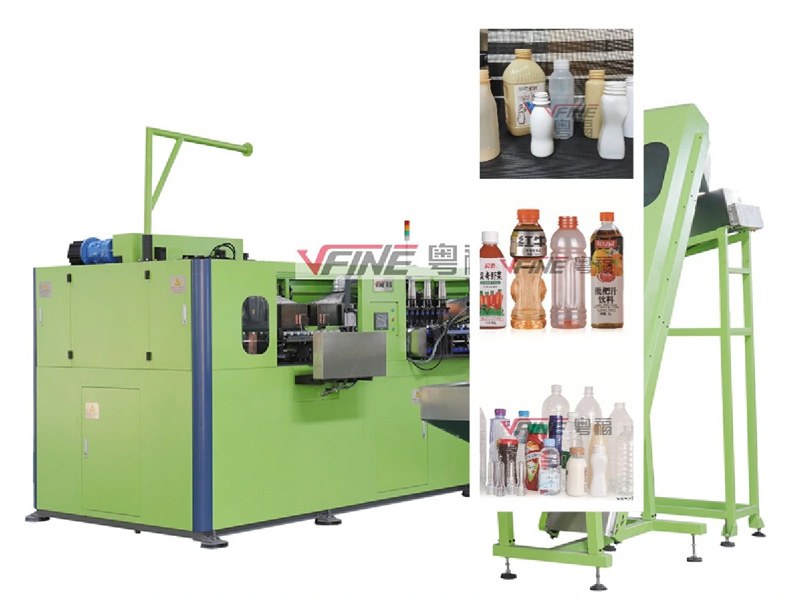

VFINE Fully Automatic 2 Cavity PET Blow Moulding Machine for 5L 20L 5 Gallon Plastic Water Tank Bottles
Vfine Machine’s fully automatic 2 cavity PET blow moulding machine is professionally designed to produce 5L, 20L and 5-gallon large-capacity PET water tank bottles. Built with a linear modular frame, it supports continuous high-volume production with stable servo stretching and top-blow forming structure. Equipped with auto preform feeding, intelligent PLC touch control and an energy-saving high-pressure air recovery system, it cuts air consumption effectively. Featuring easy mold replacement and low maintenance, this robust PET bottle molding machine is perfect for mineral water, purified water and drinking container manufacturers.
Technologies matter a lot in the manufacturing process of the product. By applying technology, We have successfully upgraded the product. Vfine’s 2 cavity blow moulding machine adopts advanced top-blow forming technology for 5L, 20L and 5-gallon large water tanks. High-precision servo stretching system delivers uniform bottle wall thickness and stable molding. Segmented infrared preheating ovens realize precise temperature control to avoid bottle deformation. A high-pressure air recycling technology recovers 50%-60% compressed air for energy conservation.
Product Specifications
| Model NO. | YF-6LE | Making Method of Parison | Stretch Blow |
| Automation | Automatic | Computerized | Computerized |
| Max Bottle Volumn | 20ml-2L | Number Of Cavity | 2 Cavity |
| Certification | CE, ISO9001:2008 | After-sales Service | Includes |
| Product | Pet Blowing Machine | Price | 5% off |
| Transport Package | Wooden Package | Specification | 2*2*2.5m |
| Trademark | VFINE | Origin | China |
| HS Code | 8477109000 | Production Capacity | 100set/Year |
| Package size per unit product | 420.00cm * 220.00cm * 250.00cm | Gross weight per unit product | 6500.000kg |
| Output | 6000-8500BHP |
Advantage of 2 Cavity PET Blow Moulding Machine
1.Linear Modular Construction
Linear layout plus modular assembly simplifies disassembly, inspection and routine maintenance to minimize downtime.
2.Precise & Low-Noise Servo Clamping System
Servo-driven clamping unit delivers ultra-precise mold locking with remarkably quiet operation, reducing factory noise pollution.
3.Built-in Static Eliminator
Integrated static removal device eliminates static electricity during molding, greatly improving surface smoothness of finished bottles, especially cosmetic PET containers.
4.Rapid Mold Replacement
Drawer-type mold fixing structure enables quick mold swap. It only takes 30 minutes to replace molds for bottles sharing identical neck specifications but different body shapes.
5.Comprehensive Safety Protection
Full set of safety interlock protection devices are installed all over the machine to prevent operational hazards and guarantee safe continuous production.

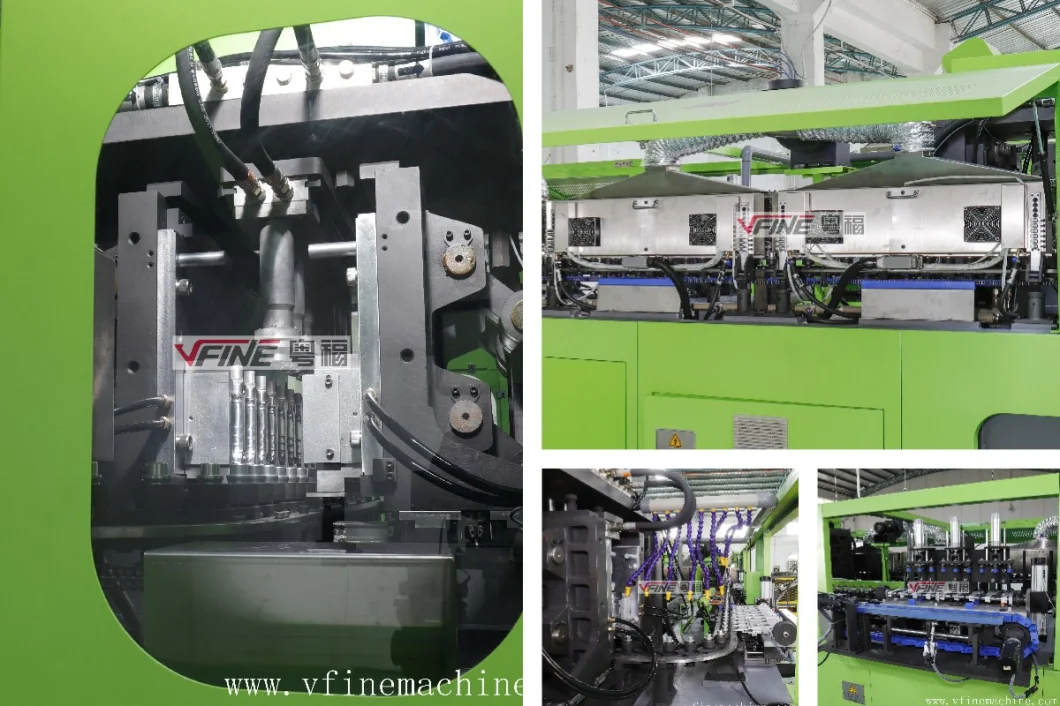

Product Structure Details

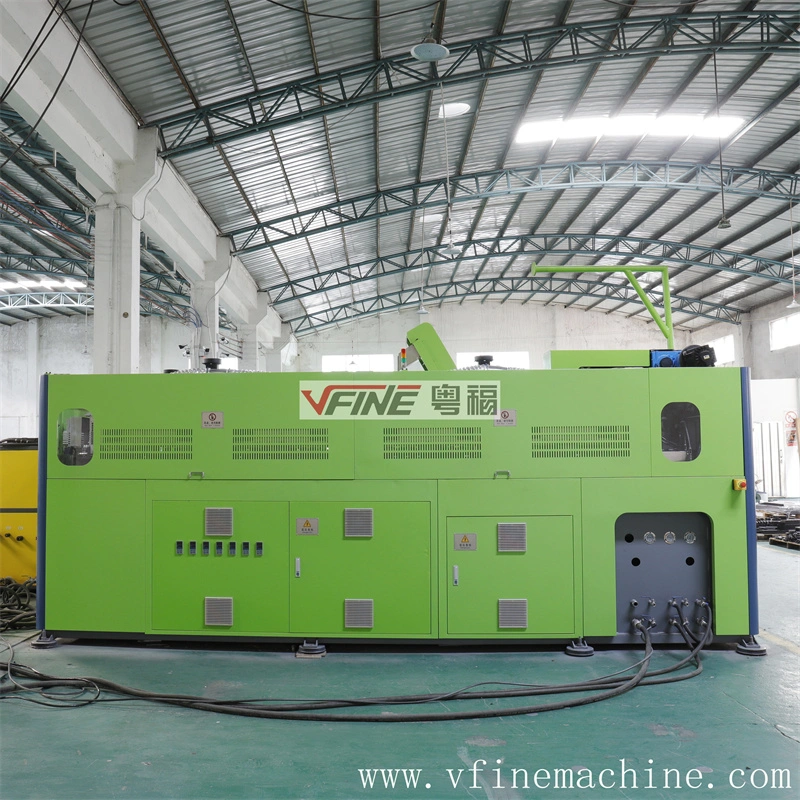

2-cavity, linear stretch blowing molding machine
Output: 6000-8500bph
Max. Volume: 2L
Overview About The Machine
1. Servo motor control, the machine runs acurately, stable and quiet

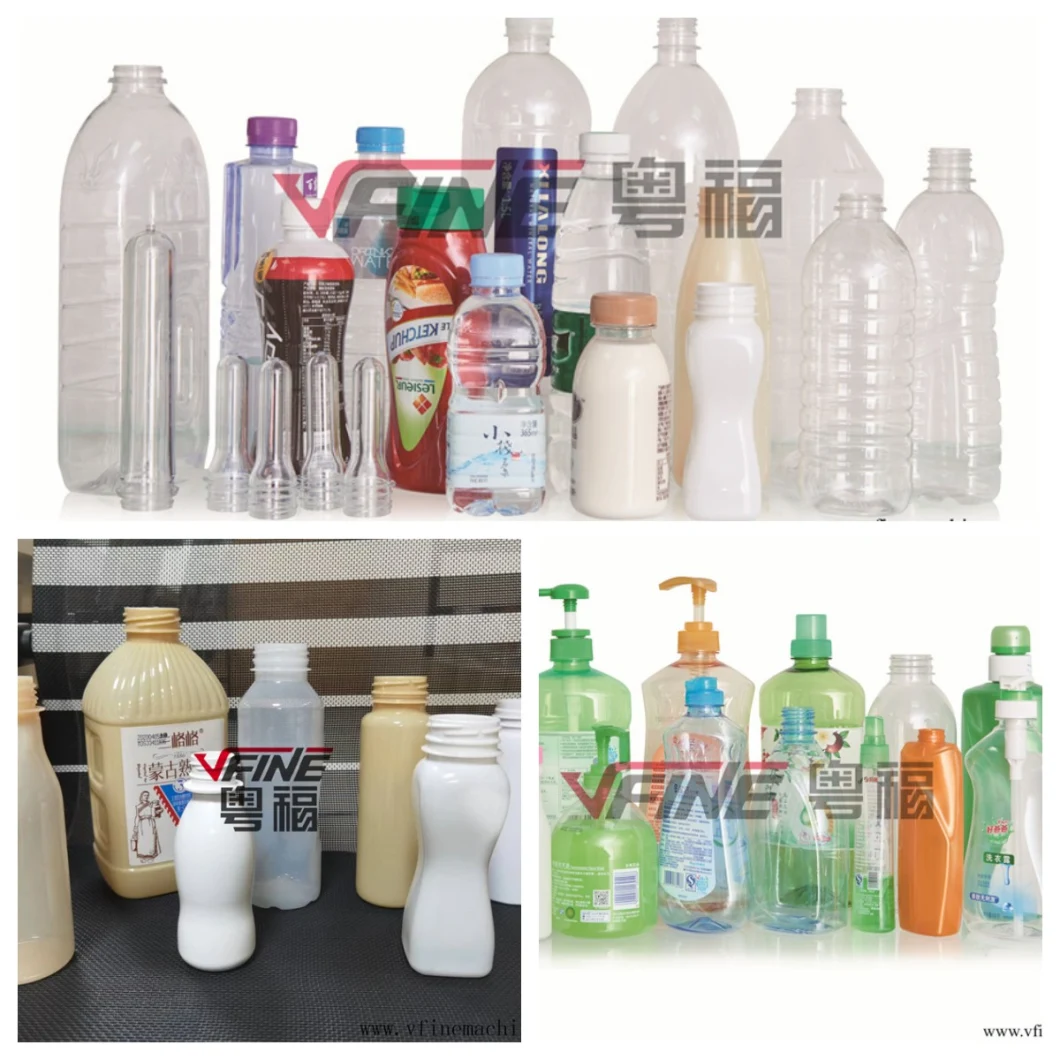

2. Available for making water bottle, juice bottle, milk bottle, beer bottle, cooking oil bottle, cosmetic bottle
3. Oil-free for preform carrier unit, very clean for the bottle production
4. Smart design of the molding unit, no more than 30minutes are needed for change a mold
5. The heating setting, stretch setting, blowing setting all can be finished in the screen.
6. Easy to learn for technician
-
Application Scope
Production Process
Guarantee: We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. The machine is guaranteed in 12months from the date of commissioning signed or 13months from bill of loading with the normal operation conditions and seller shall be in charge of installation of machine.
Short View Over Vfine Blowing Machine
1.High speed, fully eletrical, all servo control, intensively heating blowing machine
| YF-L1GLE | YF-L2GLE | YF-L2BLE | YF-L3BLE | YF-L4BLE | YF-L4LE | YF-L6LE | YF-L8LE | YF-L10LE |
| 3L - 30L | 3L-20L | 2L-5L | 2L-5L | 2L-5L | 100ml - 2L | 100ml - 2L | 100ml - 2L | 100ml - 2L |
| 500-600bph | 1200-2000bph | 2000bph | 3000bph | 4000-4500bph | 8000bph | 10000-11000bph | 14000-15000bph | 18000-20000bph |
2.Traditional type servo control blowing machine
| YF-4LE | YF-6E | YF-6LE | YF-9E | YF-2LME | YF-3ME | YF-2BLE |
| 50ml-2L | 10ml -750ml | 50ml-2L | 10ml-750ml | 50ml-2L | 8ml-750ml | 1.25-8L (bottle with side handle, and without handle) |
| 2000-3200bph(thick bottle) 5500-6000bph |
4000-6000bph(thick bottle) 8500-9000bph |
5000-6000bph(thick bottle) 8500-9000bph |
7000-8000bph(thick bottle) 12000-13000bph |
1200-1800bph(thick bottle) 3000BPH(water bottle) |
1800-2700bph(cosmetic bottle) 4000-4500bph(water bottle) |
1000-1200bph(side handle bottle) 1300-1500bph(5L) |
3.80-92 degree filling temperature, hot fill bottle machine, these machines are available for produce common bottle with normal filling temperature
| YF-2LHE | YF-4LHE | YF-6LHE | YF-L6LHE | YF-L8LHE |
| 100ml-1.5L | 100ml-1.5L | 100ml-1.5L | 100ml-1.5L | 100ml-1.5L |
| 1000BPH | 2000BPH | 3000BPH | 3000-4000BPH | 4000-5000BPH |
4.Wide neck, jar, food container bottle blowing machine
| YF-2LWE | YF-2LWE(152) | YF-4LWE | YF-4LWE(152) | YF-6LWE | YF-2BWE |
| Neck: 40mm-100mm | Neck: 40mm-140mm | Neck: 40mm-90mm | Neck: 40mm-140mm | Neck: 40mm-80mm | Neck: 80mm-130mm |
| 1200-1800bph | 1200-1800bph | 2400-3600bph | 2400-3600bph | 3600-4000bph | 1200-1500bph |
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
FAQ
Q1: Are you a trading company or a manufacturer?
Vfine(CHUMFUL) is a professional manufacturer for PET bottmachinesine, we also provide turnkey plant consultiservicesice for PET bottle production line, pet bottled water, and beverages production line for customers.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
All of Vfine machines are guaranteed at least one year, and we provide whole lifetime service for all customers, within the quality guarantee time, free offer wearing parts, and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to the seller's demand, and debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still cannot solve, we will arrange technician to your factory to solve the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After guarantee time, we offer technical support and after-sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, and debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still cannot solve, we will arrange technician to your factory to solve the problems
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time according to the date we agreed on both sides.
Q4:How can I install my machine when it arrives?
before machine shipments, we have all marks for the future machine installation, take vdos for reference. For almost all of our old customers, can manage to install the machine under the vdo guide and on-line service.
For all new customers and those who cannot handle the installation, we send engineers to the customer's factory to make the installation. Meanwhile, we will make training for customer technician and machine operators.
Q5:What's the delivery time?
45-90 days after receipt of the deposit.
Q6: Where is your factory located?

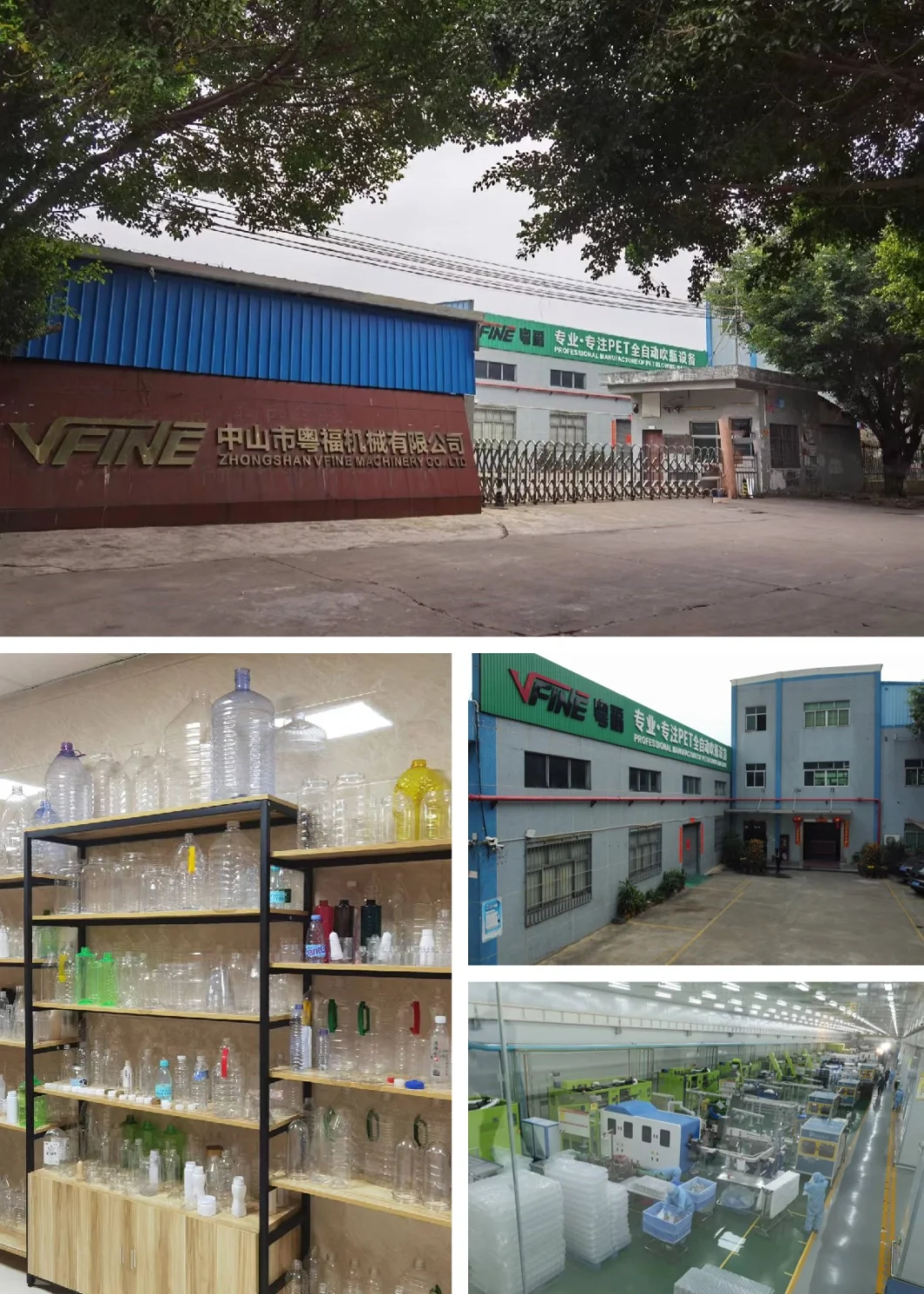

Vfine locates in Zhongshan city, which is 1 hour away from Guangzhou airport and 2 hours away from Shenzhen airport.
Q7: How is your machine quality?
Our R&D engineer started to design and develop the PET blowing machine since 2001 for the first generation automatic linear PET bottle blowing machine, who have plenty of experience in the PET Bottle market, we keep improving the machine detail design and machine quality, till now we have successful cooperation with many world-famous brand, which also make us keep moving on for machine performance and let us take very serious control for our machine quality.
Q8: Can you make the bottle design?
Vfine(CHUMFUL) technical team not only make design of our machine, we also provide bottle design and bottle function testing for all customers.
Q9: What is the language of the PLC and touch panel?
we provide English, Spanish, Russian and Chinese version in the screen.
A: yes, the machine is available for water bottle, edible oil bottle, csd bottle, wine bottle, etc
Q11: is the blowing machine available for different bottle mold
A: yes, the machine is designed with very easy bottle mold change unit, only need 30minutes to change a mold
Q12: Do you provide customized service
Yes, VFINE(chumful) technical team gets plenty of experience in the pet BOTTLE market, we have lots of customized designs according to customer requirements, the special bottleneck, the special label, and the special bottle shape, and the bottle function.
