VFINE - Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing

After years of development, we have introduced and upgraded the technologies so as to make the manufacturing process more efficient.As more and more Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing advantages have been gradually discovered, the product enjoys a wider range of application uses and now can be found in the field(s) of Screw Compressor.

Lubrication Style:

Oil-free

After-sales Service:

Includes

Warranty:

1year

Inquiry

Write a Review

We are specialized in manufacturing Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing, etc. for over many years. The use of in Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing manufacturing has allowed us for more efficient use of resources and personnel.The product is highly recognized in the application field(s) of Screw Compressor. Therefore, for those buyers looking to buy Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing in bulk quantity for their business, buying them from a reputable manufacturer would be a wise choice.

Model NO.	20CBM/MIN/40BAR	Cooling System	Water Cooling
Power Source	AC Power	Cylinder Position	Angular
Structure Type	Semi-Closed Type	Installation Type	Stationary Type
Type	Single Screw Compressor	Product	Air Compressor System
Transport Package	Wooden Box	Specification	3package
Trademark	vfine	Origin	China Guangzhou
HS Code	8414809090	Production Capacity	1000sets/Year

Product Description

Compressor System for Pet bottle Blowing Oil Free less screw type high pressure air
about vfine and chumful

•Zhongshan chumful machinery co ltd is the one branch of Zhongshan Vfine machinery co ltd, which is a professional manufacturer of PET bottle blowing machines, that integrates the R&D, production, and sales. Since the development and design of the first generation linear automatic stretch blow molding machine, Vfine's technical team has focused in the PET market for 20 years. We've successfully supplied machines to many world-famous brands.
Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing

Oil Free Less Oilless Screw High Pressure Air Compressor System Unit for Pet Bottle Blowing Making Manufacturing

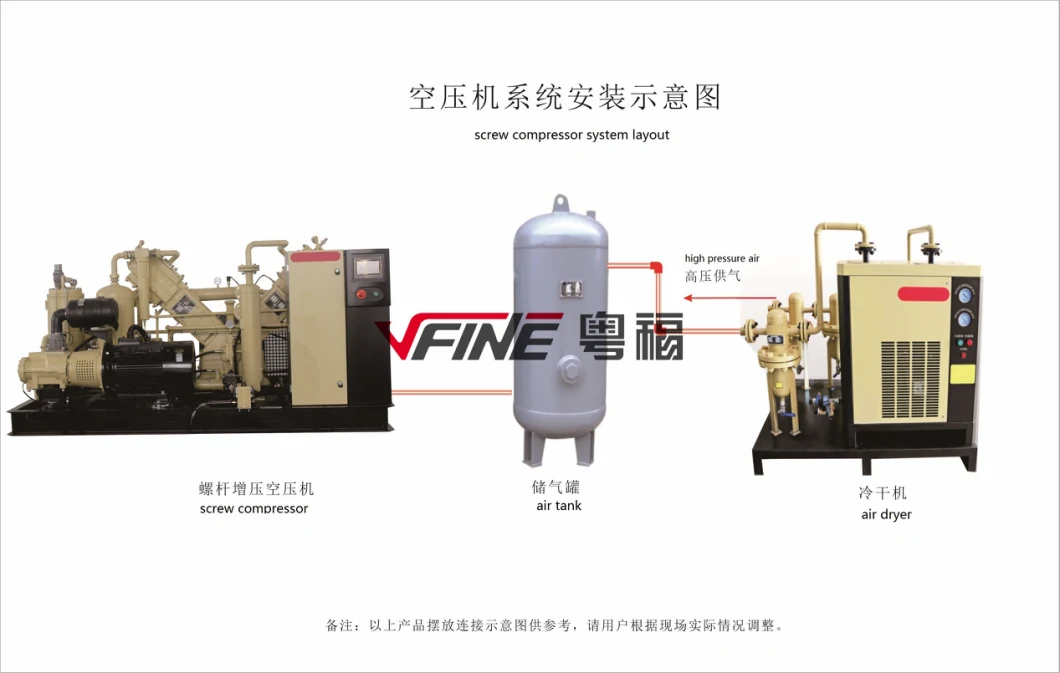

item	Description and suggestion
Air compressor Air pressure:4.0Mpa	Produce the high pressure air
tank Air pressure:4.0Mpa	Storage of the high pressure air, also as the buffer to cool the hot air; the water and dirt would be left in tank, so that to reduce load of air treatment system.
High pressure air dryer Air pressure:4.0Mpa	The oil and water within the compress air would be cooled to liquid status, the solid dirt together with the cold liquid will be exhausted out from the automatic drain, then the clean air can be provide to the production line.
Pre-filter Air pressure:4.0Mpa solid≤3 um Oil left≤5ppm	Clean the big solid dirt in the compress air.
Post filter Air pressure:4.0Mpa solid≤1 um Oil left≤1ppm	Clean the medium size solid dirt in the compress air
Precise filter Air pressure:4.0Mpa solid≤0.01 um Oil left≤0.01ppm	Clean all the solid dirt in the compress air
Carton filter Air pressure:4.0Mpa solid≤0.01 um Oil left≤0.003ppm	Clean the smell and dirt in the compress air

Training: customers can send technician to vfine factory for 7-10 days training by buyers own charge

Delivery time: 30 days after confirmation of bottle designed and receipt of the down payment

Packing: Included the packing cost..

Guarantee: We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. The machine is guaranteed in 12months from the date of commissioning signed or 13months from bill of loading with the normal operation conditions and seller shall be in charge of installation of machine.

Installation: Vfine would send engineer to Any installation outside of China, but buyer shall pay traveling expenses, including but not limited to, air ticket fees, 3 star-level boarding lodging fees, and all expenses for seller engineers' trips, also buyer should be apply the visa for seller's engineers. Buyer need also pay the salary for engineer.

After sales
After checking, within the quality guarantee time, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Q&A
Q: is the air compressor system include the tank
A: yes, the system include complete unit, the air compressor, air tank, air dryer and air filters.

Q: is the air compressor system oil free
A: yes it is a oil free air compressor system
