It is one of the hot-selling products of Zhongshan Vfine Machinery Co., Ltd. The Catair Air Compressor System Laser Machine Air Supply Ca-11tk Ca 1.2-30h Ca15tk Cat-1.0/30kg launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. In the future, Zhongshan Vfine Machinery Co., Ltd will focus on technological innovation, continuously improve service quality and develop better products, and is committed to providing customers with products and services that exceed expectations.

Product Description

air compressor system for 1KW or 2KW laser machine
CA 1.2-30H  CAT-1.0/30KG



CA-11TK   CA15TK

Specifications
machine:air compressor
2stage piston type air cooled compressor
High pressure part(source air)
Specification

power	HP	11KW
capacity	m3/min	1.08
Inlet air temp.	ºC	≤35
Exhaust air temp.	ºC	≤60 (after cooling)
Full load air pressure	Mpa	1.55
voltage	V/Hz/Ph	380/50/3
Cooling way		Air type
motor		IP54
Insulation level		F Level
Motor quantity	set	1
Machine size	Mm	1730*780*1850

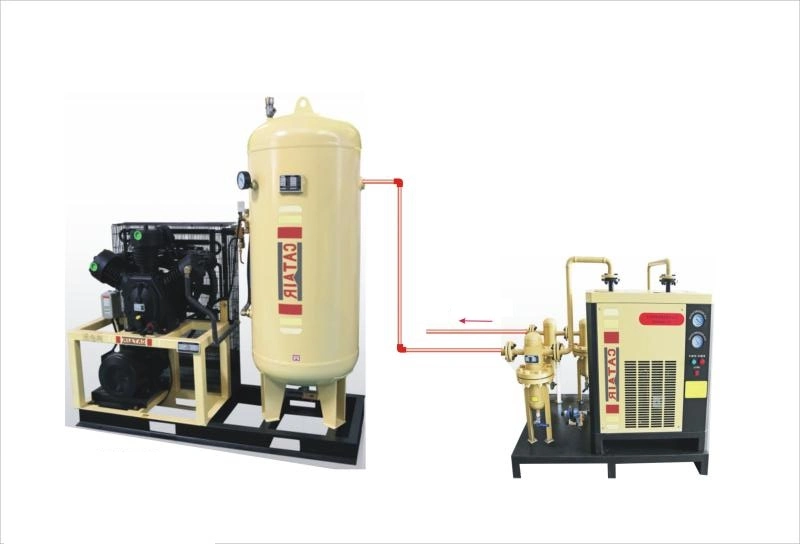

High pressure part(source air)

item	Description and suggestion
Air compressor Air pressure:1.55Mpa	Produce the high pressure air
tank Air pressure:1.6 Mpa	Storage of the high pressure air, also as the buffer to cool the hot air; the water and dirt would be left in tank, so that to reduce load of air treatment system.
High pressure air dryer Air pressure:1.6Mpa	The oil and water within the compress air would be cooled to liquid status, the solid dirt together with the cold liquid will be exhausted out from the automatic drain, then the clean air can be provide to the production line.
Pre-filter Air pressure:1.6Mpa solid≤3 um Oil left≤5ppm	Clean the big solid dirt in the compress air.
Post filter Air pressure:1.6Mpa solid≤1 um Oil left≤1ppm	Clean the medium size solid dirt in the compress air
Precise filter Air pressure:1.6Mpa solid≤0.01 um Oil left≤0.01ppm	Clean all the solid dirt in the compress air

Specifications
machine:air compressor

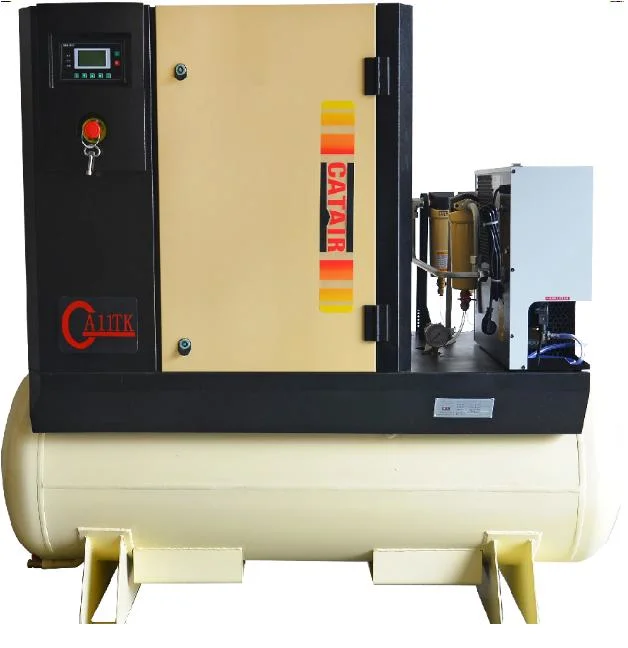

Model:CA-11TK
Specification

power	HP	11KW
capacity	m3/min	1.08
Inlet air temp.	ºC	≤35
Exhaust air temp.	ºC	≤60 (after cooling)
Full load air pressure	Mpa	1.55
voltage	V/Hz/Ph	380/50/3
Cooling way		Air type
motor		IP54
Insulation level		F Level
Motor quantity	set	1
Machine size	Mm	1730*780*1850

Tank specifications

capacity	M3/min	0.4
Max. air pressure	Mpa	1.6
Max air temp. inlet	ºC	<100
Size L*W*H	Mm
Max workshop temp.	ºC	38

Air treatment system
1, dryer
Model: 2m³/1.6Mpa
specification

capacity	2Nm3/min
	Max inlet pressure	1.6Mpa
	Inlet temp.	≤80ºC
	Dew point	10-15ºC
	Environment temp.	<46ºC
	Recycle water
	coolant	R22
	power	0.8kw
	Cooling type	Air type
	Inlet Water pressure
	Inlet water
Coolant compressor	Japan	Panasonic
drain	vavle	3pc Netherlands valve
power		220V/50Hz

2. Filter
 Pre-filter

capacity	2.0m3/min
Max inlet pressure	1.6MPa
Inlet temp.	≤60ºC
Environment temp.	≤45ºC
Filter precision	≤3μm
Oil in Outlet air	5ppm (w)
Pressure drop	dry drop ≤0.007MPa, wet drop ≤ 0.014MPa
Filter element	6000-8000hour
structure	Filter element
connector	DN20  threaded fittings
drain	Drain includes, exhaust automaticly

(2)post-filter

capacity	2.0m3/min
Max inlet pressure	1.6MPa
Inlet temp.	≤60ºC
Environment temp.	≤45ºC
Filter precision	≤1μm
Oil in Outlet air	1ppm (w)
Pressure drop	dry drop ≤0.007MPa,wet drop ≤ 0.014MPa
Filter element	6000-8000h
structure	Filter element
drain	Drain includes, exhaust automaticly
connector	DN20  threaded fittings

(3)precise filter

capacity	2.0m3/min
Max inlet pressure	1.6MPa
Inlet temp.	≤60ºC
Environment temp.	≤45ºC
Filter precision	≤0.01μm
Oil in Outlet air	0.01ppm (w)
Pressure drop	dry drop ≤0.007MPa,wet drop ≤ 0.014MPa
Filter element	6000-8000h
structure	Filter element
drain	Drain includes, exhaust automaticly
connector	DN20  threaded fittings

The compressor includes one set 11kw piston by following components:
Compressor, motor, V-belt with cover, exhaust valve, manual water drain, gauge
