Fully Automatic PET Water Bottle Blowing Moulding Making Machine
Vfine fully automatic PET water bottle making machine adopts mature two-step stretching blowing technology, professionally designed for pure water, mineral water beverage container production. Equipped with independent infrared preheating system and segmented temperature adjustment, it realizes even preform heating without material scorching. Matching high-precision servo clamping structure and circulating water cooling system, it guarantees symmetrical bottle wall and flawless bottle appearance. This energy-saving, low-fault water bottle blowing machine supports 50ml-8L bottle customized production, suitable for standardized continuous production of medium and large beverage manufacturing plants.
The fully automatic PET water bottle moulding machine operates on a servo-driven kinematic architecture, ensuring precise preform indexing and rapid dry-cycle times. Its core features a closed-loop, segmented infrared heating matrix that dictates an exact thermal profile across the PET preform, optimizing material distribution for ultra-lightweight water bottles. During the two-stage process, synchronized stretch rods and low-dead-space pneumatic valves execute rapid, uniform expansion to minimize residual stress in the polymer matrix. Paired with an integrated air-recycling loop and a rigid toggle-clamping mechanism, it minimizes energy overhead and eliminates parting-line flash.
| Model NO. | YF-L8LE | Technics | Bottle Blowing |
| Product | Bottle Making Machine | Item | Bottle Making Machine Price |
| Item 3 | Pet Bottle Machinery | Item 4 | Pet Bottle Machinery Price |
| Transport Package | Wooden | Specification | 7m*2m*2.5m(l*w*h) |
| Trademark | vfine | Origin | China |
| HS Code | 8477109000 | Production Capacity | 50-100set/Year |

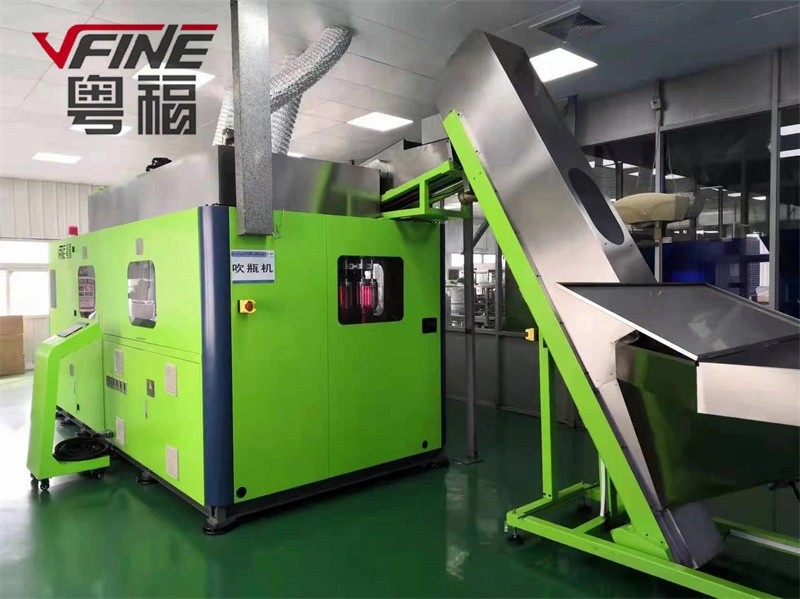

Model: YF-L10E
the water bottle making machine is with full servo, intensively heating, it intergrate the advantage of PET linear blow molding machine and rotary blowing machine. high efficience, high quality, smart design for worker's operation, and durable.
10-cavity, linear stretch blowing molding machine
Output: 18000bph
Max. Volume: 0.6L
Application scope
Suitable for producing PET water bottle, carbonate bottle, middle temperature filling bottle etc.
YF-L Series Vfine Water Bottle Blowing Machine Features
-
save energy :
The preform heating and blowing are on separated section, so that it can save the waiting time of each unit. The preforms are heated intensively, as the rotary machine heating type, improve the heating efficiency. Meanwhile, the high pressure air can saved by air recycling system, for the pre-blow or low pressure air supply, save energy. -
Save space:
The infeeding system is inside the machine, the heating structure save the preform pitch distance, save the space. -
high efficiency:
We improve about 20% output, in the situation of low down the machine energy consumption, improve the overall energy utilization. -
Infeeding system:
The infeeding system is in single channel with less sensors for better infeeding. -

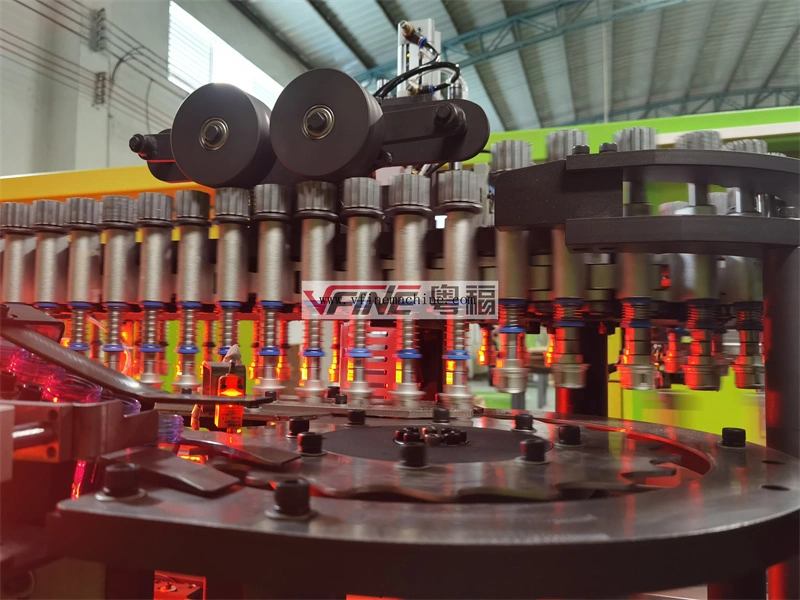

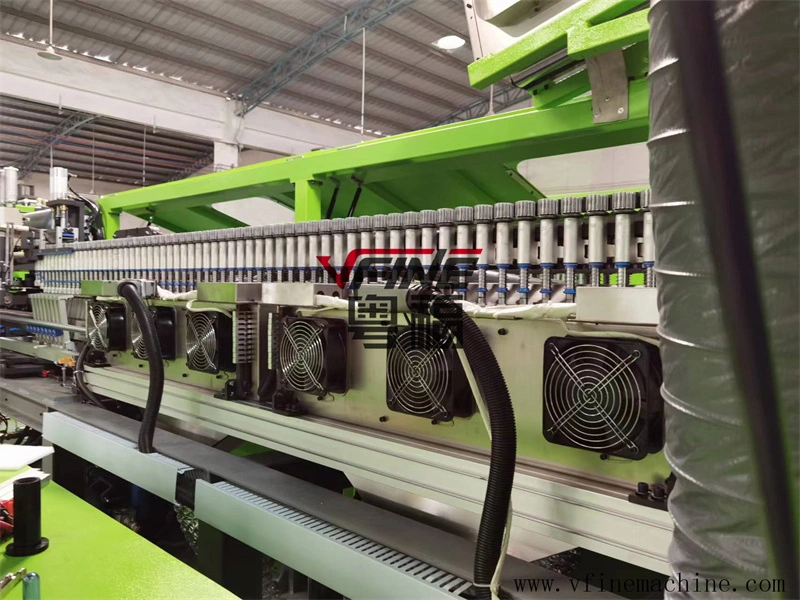

Heating system:
Preforms are heated intensively, the cooling device and the cross ventilation protect the preform neck from out of shape, improve the energy utilization, and heating efficiency. -

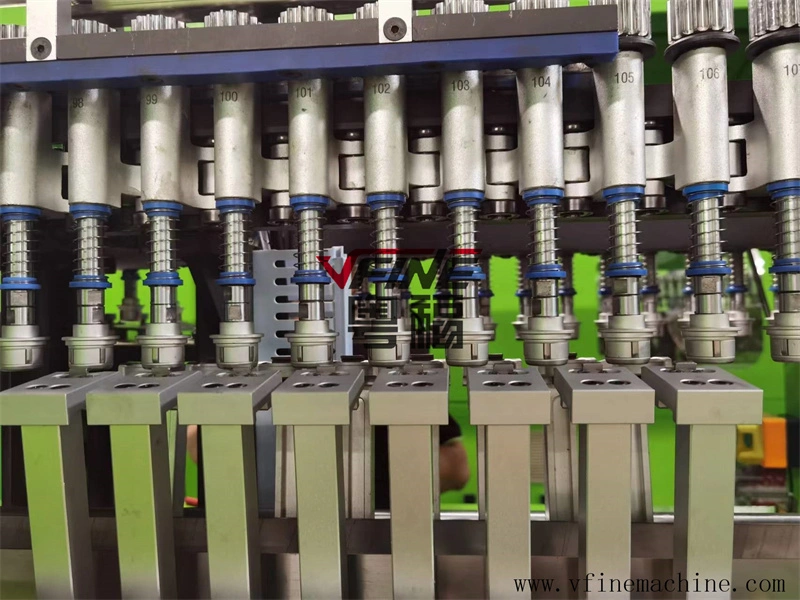

Transfer unit: The variable pitch device is controlled by servo for stable and accurate transferring.
-

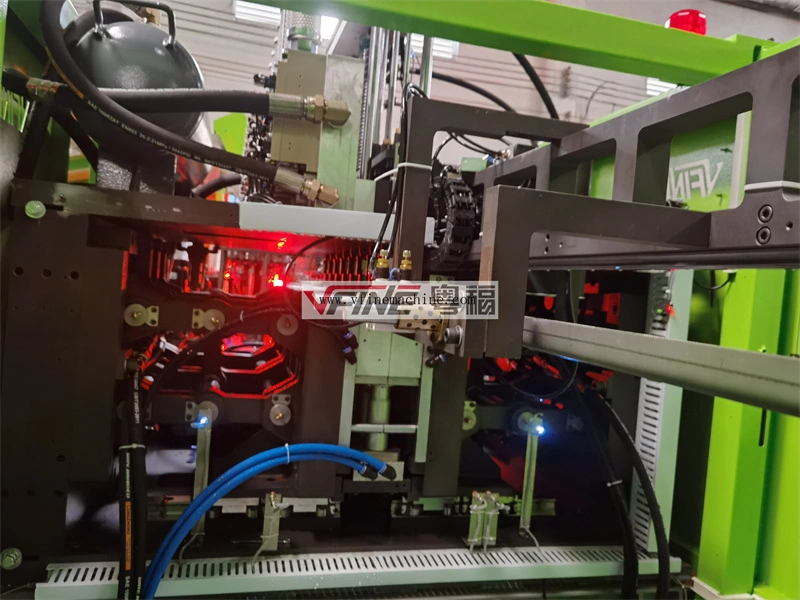

Clamping unit: The clamping unit is controlled by servo motor to ensure the synchronization, stable running and precise location.
-
High pressure air recycle system: The high pressure air recycle system save the high pressure to the tank, reduce the noise and save energy lost.
Vfine PET Bottle Blow Molding Machine YF-L10E Specifications
| MODEL | YF-L10E |
| Max Bottle Volumn | 600ml |
| Cavity number | 10 |
| output | 18000BPH |
| Machine size | 6700*2000*2500 |
| Machine weight | 9000kg |
Product List Short View

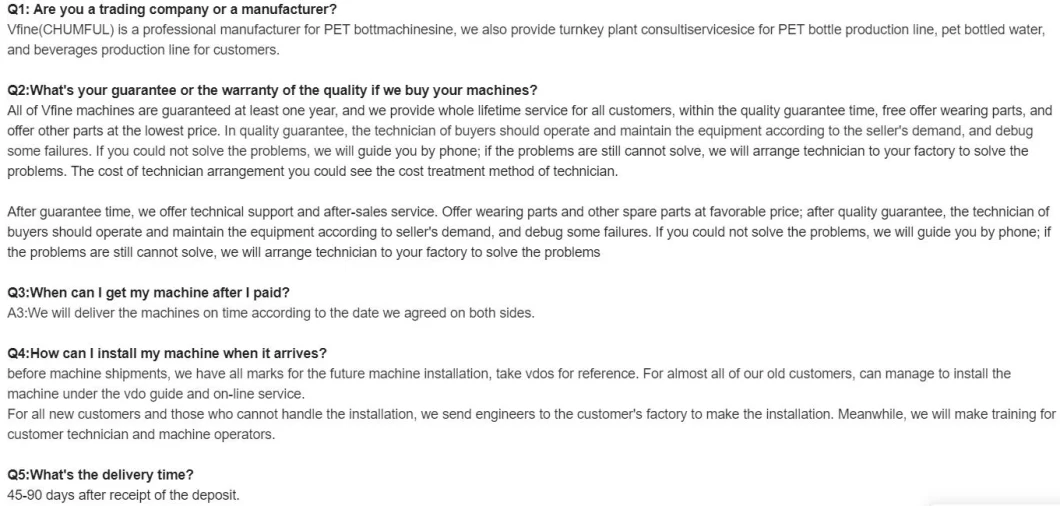

We have a professtional after-sale service team, before machine arrive, we will give consulting service about the machine place, eletricity, and water prepare works. after machine arrive in customer factory, we also send engineer for installation, and make training for customer's engineer, customer should take charge of the engineer travel cost, board and lodging and labor cost.
