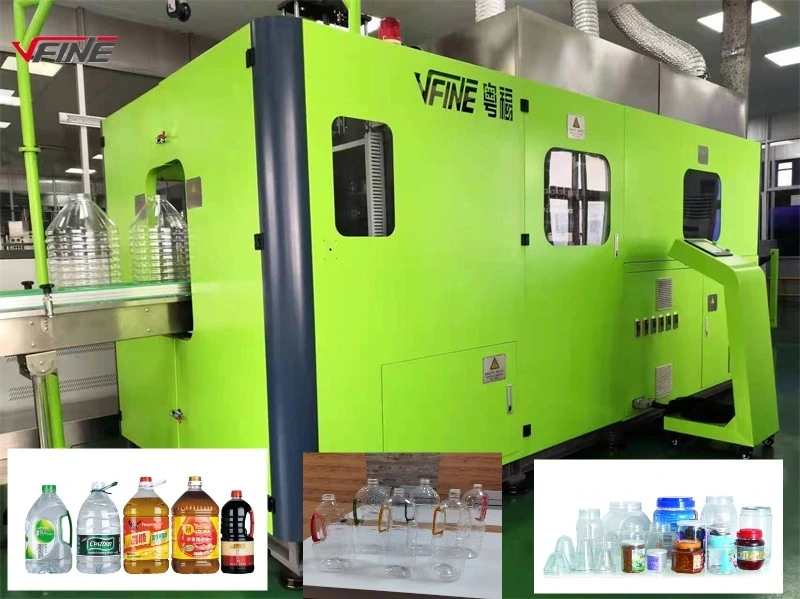

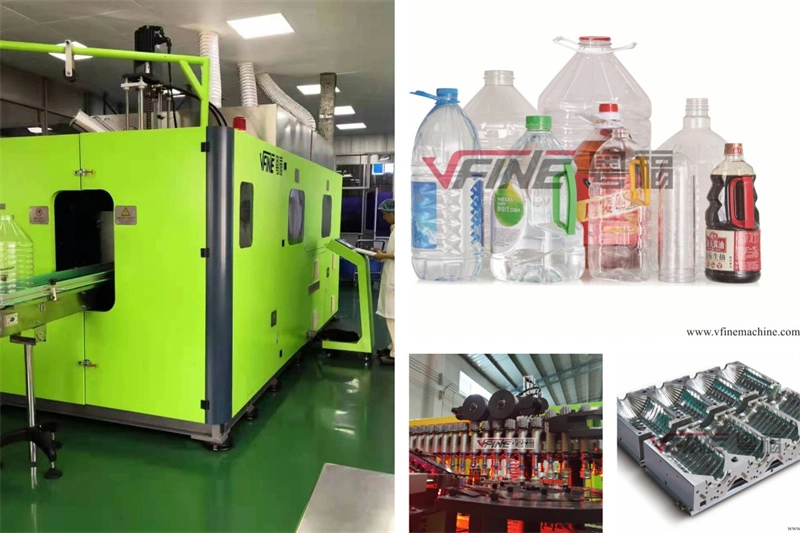

PET Bottle Stretch Blow Moulding Machine 4500 BPH 5L 10L 15L 20L 5 Gallon
Vfine Machine conforms to the development trend of the industry, integrates internal superior resources, adopts the industry's cutting-edge manufacturing technology and production technology, and successfully creates YF-L4BLE PET bottle blowing machine for 5L 10L 15L 20L Bottle at 4500 BPH with excellent performance and reliable quality.
Unlike standard blow molders, this heavy-duty 4,500 BPH PET stretch blow moulding machine system is engineered to conquer the unique thermal and structural challenges of blowing thick-walled, large-capacity PET preforms up to 5 gallons. Standard machines often struggle with uneven material distribution or preform crystallization during extended heating cycles. This system solves that by pairing a deep-penetration infrared heating zone with highly precise, independent temperature controls. Driven by a synchronized servo clamping-and-stretching network, it maintains absolute mechanical alignment even during high-pressure blowing spikes.
Product Specifications
| Model NO. | YF-L4BLE | Product | Blowing Machine |
| Raw Material | PET | Making Method of Parison | Stretch Blow |
| Automation | Automatic | Computerized | Computerized |
| Certification | CE, ISO9001:2008, QS | Transport Package | Wooden |
| Specification | 6.7m*2m*2.5m(l*w*h) | Trademark | vfine |
| Origin | China | HS Code | 8477109000 |
| Production Capacity | 50-100set/Year | Package size per unit product | 600.00cm * 200.00cm * 250.00cm |
| Gross weight per unit product | 7000.000kg |
Product Description
1. Save Energy : The preform heating and blowing are on separated section, so that it can save the waiting time of each unit. The preforms are heated intensively, as the rotary machine heating type, improve the heating efficiency. Meanwhile, the high pressure air can saved by air recycling system, for the pre-blow or low pressure air supply, save energy.
2.Save Space: The infeeding system is inside the machine, the heating structure save the preform pitch distance, save the space.
3.High Efficiency: We improve about 20% output, in the situation of low down the machine energy consumption, improve the overall energy utilization.

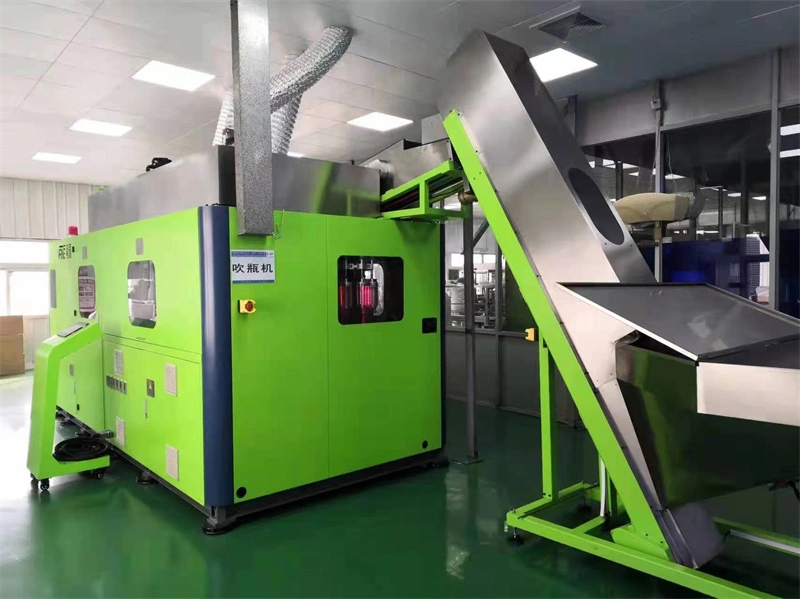

4. Infeeding System: The infeeding system is in single channel with less sensors for better infeeding.

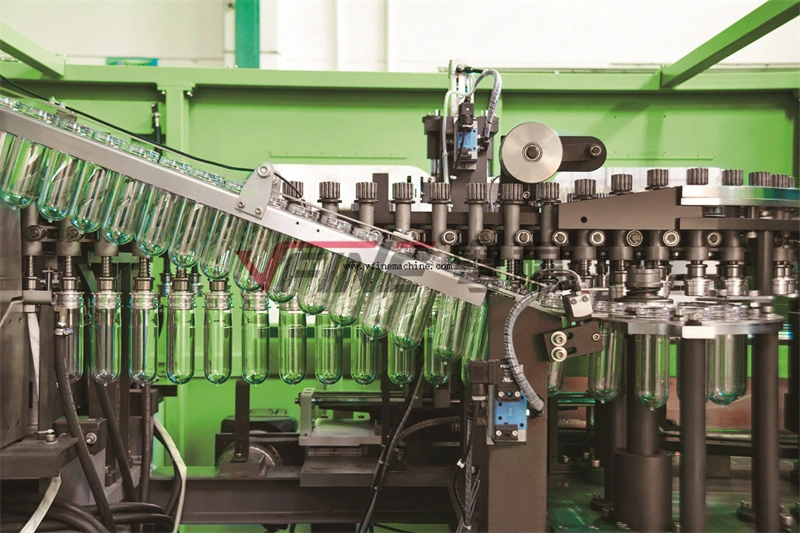

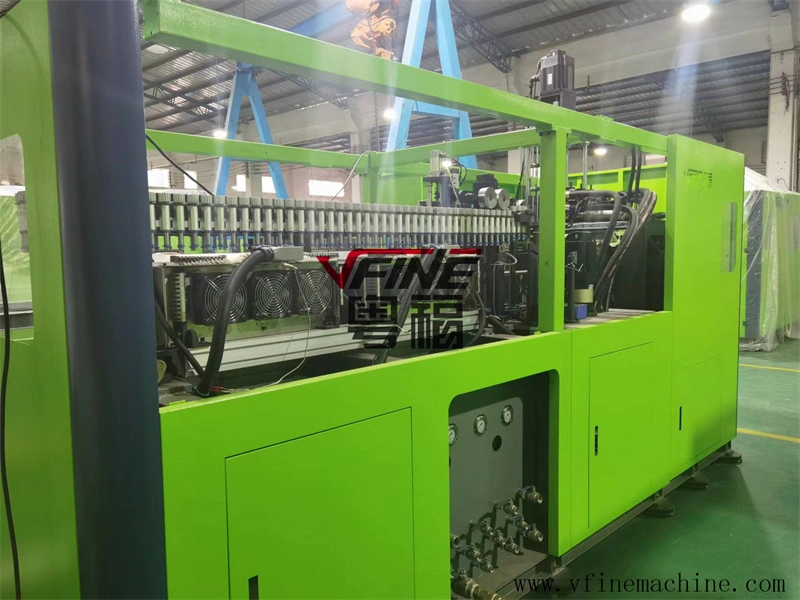

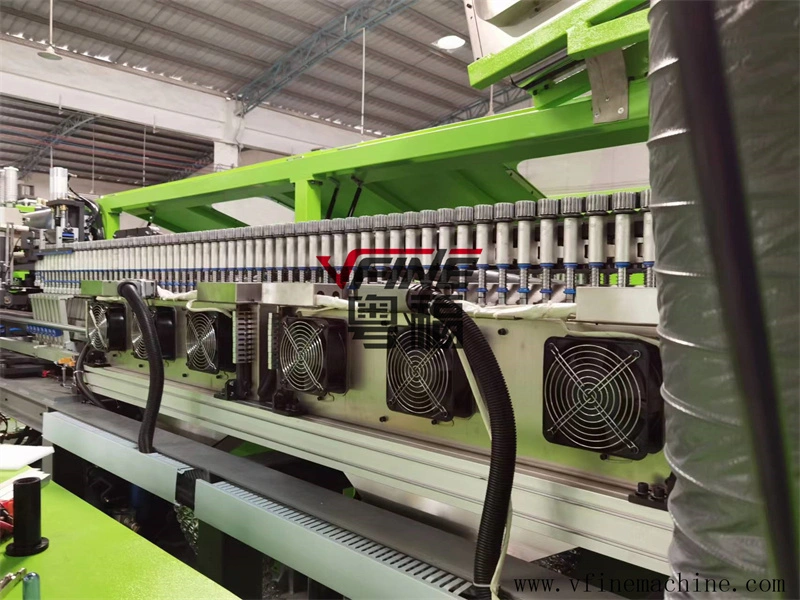

5. Heating System: Preforms are heated intensively, the cooling device and the cross ventilation protect the preform neck from out of shape, improve the energy utilization, and heating efficiency.
6. Transfer Unit: The variable pitch device is controlled by servo for stable and accurate transferring.

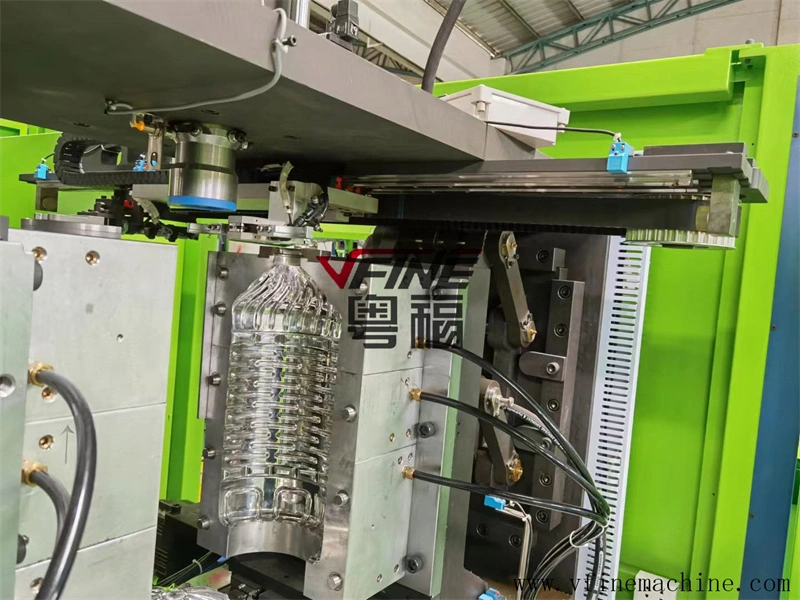

7. Clamping Unit: The clamping unit is controlled by servo motor to ensure the synchronization, stable running and precise location.
8. High Pressure Air Recycle System: The high pressure air recycle system save the high pressure to the tank, reduce the noise and save energy lost.
Application Scope
This YF-L4BLE 4500 BPH PET bottle stretch blow moulding machine with consistent quality and structural integrity which is widely deployed in drinking water bottling plants for household delivery, office dispensers and bulk water distribution, as well as in edible oil manufacturing for cooking oil, soybean oil, sunflower oil and olive oil packaging where food-grade compliance and leak-proof sealing are critical. The machine caters to personal care and household product sectors for shampoo, laundry detergent and cleaning product bottles, and serves beverage and dairy bulk packaging for juice concentrates, syrups and food service ingredients. Its versatile mold compatibility and quick-change design enable manufacturers to efficiently switch across multiple product lines and bottle specifications.
PET Stretch Blow Moulding Machine YF-L4BLE specifications
| MODEL | YF-L4BLE |
| Max Bottle Volumn | 5L |
| Cavity number | 4 |
| output | 4000-4500BPH |
| Machine size | 6000*2000*2700 |
| Machine weight | 8500kg |
Short View Over Vfine PET Bottle Blowing Machine
1.High speed, fully electric, all servo control, intensively heating blowing machine
| YF-L1GLE | YF-L2GLE | YF-L2BLE | YF-L3BLE | YF-L4BLE | YF-L4LE | YF-L6LE | YF-L8LE | YF-L10LE |
| 3L - 30L | 3L-20L | 2L-5L | 2L-5L | 2L-5L | 100ml - 2L | 100ml - 2L | 100ml - 2L | 100ml - 2L |
| 500-600bph | 1200-2000bph | 2000bph | 3000bph | 4000-4500bph | 8000bph | 10000-11000bph | 14000-15000bph | 18000-20000bph |
2.Traditional type servo control blowing machine
| YF-4LE | YF-6E | YF-6LE | YF-9E | YF-2LME | YF-3ME | YF-2BLE |
| 50ml-2L | 10ml -750ml | 50ml-2L | 10ml-750ml | 50ml-2L | 8ml-750ml | 1.25-8L (bottle with side handle, and without handle) |
| 2000-3200bph(thick bottle) 5500-6000bph |
4000-6000bph(thick bottle) 8500-9000bph |
5000-6000bph(thick bottle) 8500-9000bph |
7000-8000bph(thick bottle) 12000-13000bph |
1200-1800bph(thick bottle) 3000BPH(water bottle) |
1800-2700bph(cosmetic bottle) 4000-4500bph(water bottle) |
1000-1200bph(side handle bottle) 1300-1500bph(5L) |
3. 80-92 degree filling temperature, hot fill bottle machine, these machines are available for produce common bottle with normal filling temperature
| YF-2LHE | YF-4LHE | YF-6LHE | YF-L6LHE | YF-L8LHE |
| 100ml-1.5L | 100ml-1.5L | 100ml-1.5L | 100ml-1.5L | 100ml-1.5L |
| 1000BPH | 2000BPH | 3000BPH | 3000-4000BPH | 4000-5000BPH |
4. Wide neck, jar, food container bottle blowing machine
| YF-2LWE | YF-2LWE(152) | YF-4LWE | YF-4LWE(152) | YF-6LWE | YF-2BWE |
| Neck: 40mm-100mm | Neck: 40mm-140mm | Neck: 40mm-90mm | Neck: 40mm-140mm | Neck: 40mm-80mm | Neck: 80mm-130mm |
| 1200-1800bph | 1200-1800bph | 2400-3600bph | 2400-3600bph | 3600-4000bph | 1200-1500bph |
We have a professional after-sale service team, before the PET blowing machine arrive, we will give consulting service about the machine's place, electricity, and water preparation works. after the machine arrives in the customer's factory, we also send the engineer for installation and make training for the customer's engineer, customer should take charge of the engineer's travel cost, board and lodging , and labor cost. All the machines ship from vfine machinery, are well tested and with no less than 72hours continous running, and at least 1hour continous production test, which make sure that, all the equipments can be quickly make production in customer's factory.
We guarantee that, all the automatic PET stretch blow molding machine can finish installation and start production with 2days since our engineer commission, under the condition that the customer workshop meets the installation conditions. During commission time, our engineer will make training for customer technician and workers, make sure that, the machine will be correct operated.
FAQ
Q1: Are you a trading company or a manufacturer?
Vfine(CHUMFUL) is a professional manufacturer for PET bottmachinesine, we also provide turnkey plant consultiservicesice for PET bottle production line, pet bottled water, and beverages production line for customers.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
All of Vfine machines are guaranteed at least one year, and we provide whole lifetime service for all customers, within the quality guarantee time, free offer wearing parts, and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to the seller's demand, and debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still cannot solve, we will arrange technician to your factory to solve the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After guarantee time, we offer technical support and after-sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, and debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still cannot solve, we will arrange technician to your factory to solve the problems
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time according to the date we agreed on both sides.
Q4:How can I install my machine when it arrives?
before machine shipments, we have all marks for the future machine installation, take vdos for reference. For almost all of our old customers, can manage to install the machine under the vdo guide and on-line service.
For all new customers and those who cannot handle the installation, we send engineers to the customer's factory to make the installation. Meanwhile, we will make training for customer technician and machine operators.
Q5:What's the delivery time?
45-90 days after receipt of the deposit.
Q6: Where is your factory located?

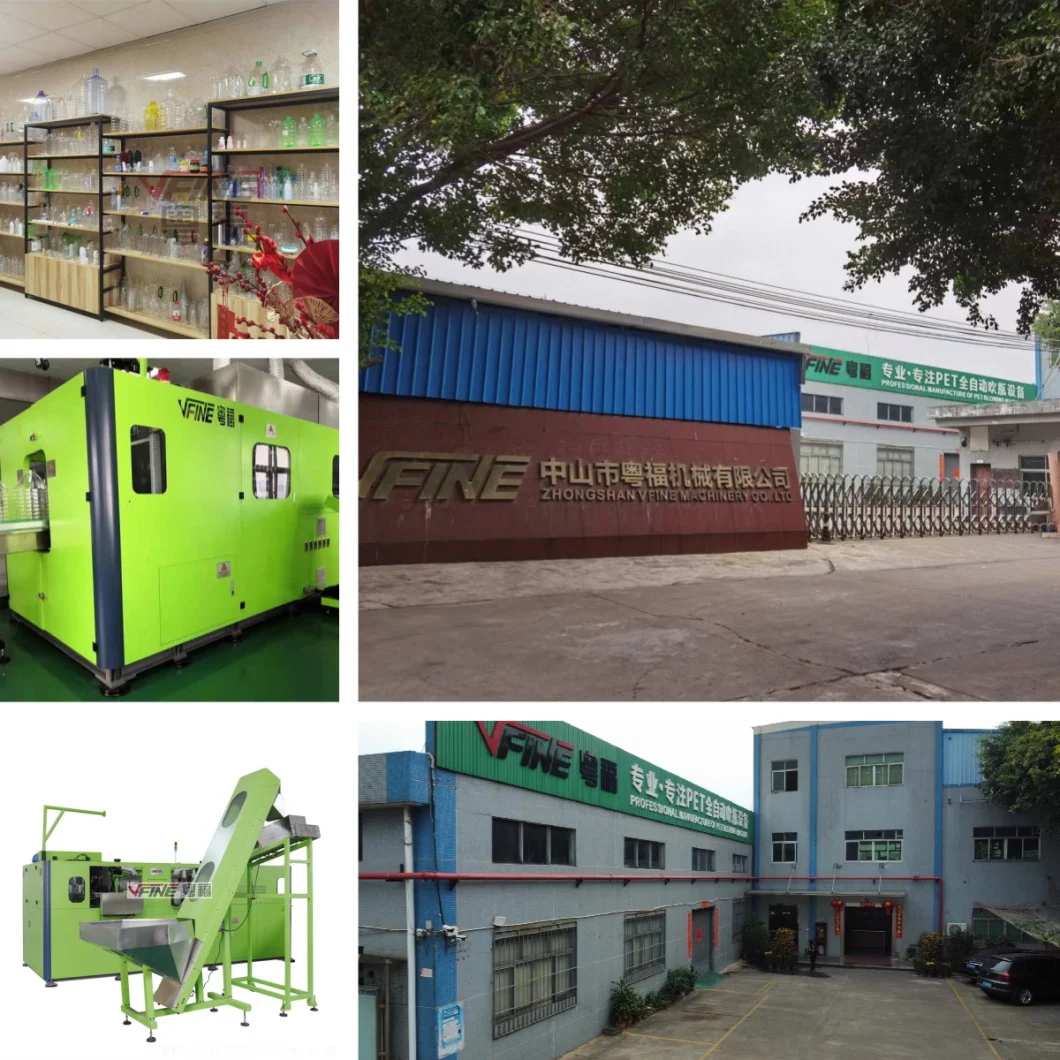

Vfine locates in Zhongshan city, which is 1 hour away from Guangzhou airport and 2 hours away from Shenzhen airport.
Q7: How is your machine quality?
Our R&D engineer started to design and develop the PET blowing machine since 2001 for the first generation automatic linear PET bottle blowing machine, who have plenty of experience in the PET Bottle market, we keep improving the machine detail design and machine quality, till now we have successful cooperation with many world-famous brand, which also make us keep moving on for machine performance and let us take very serious control for our machine quality.
Q8: Can you make the bottle design?
Vfine(CHUMFUL) technical team not only make design of our machine, we also provide bottle design and bottle function testing for all customers.
Q9: What is the language of the PLC and touch panel?
we provide English, Spanish, Russian and Chinese version in the screen.
Q10: is the blowing machine suitable for CSD, water bottle
A: yes, the machine is available for water bottle, edible oil bottle, csd bottle, wine bottle, etc
Q11: is the blowing machine available for different bottle mold

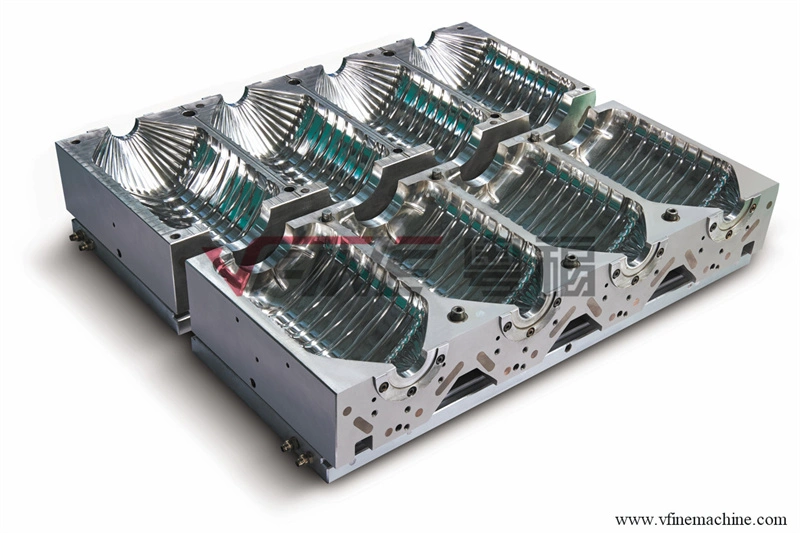

A: yes, the machine is designed with very easy bottle mold change unit, only need 30minutes to change a mold
Q12: Do you provide customized service
Yes, VFINE(chumful) technical team gets plenty of experience in the pet BOTTLE market, we have lots of customized designs according to customer requirements, the special bottleneck, the special label, and the special bottle shape, and the bottle function.
