VFINE - 5gallon 20L 5 LTR 20 Liters Fully Automatic Pet Plastic Stretch Water Bottle Tank Blow Blowing Molding Making

Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of 5gallon 20L 5 LTR 20 Liters Fully Automatic Pet Plastic Stretch Water Bottle Tank Blow Blowing Molding Making Moulding Manufacturing Machine 2 Cavity Price. The technology greatly improves product performance and accelerates the manufacturing process.It has a considerably expanded application range and is popular in the field(s) of Blow Molding Machine. Zhongshan Vfine Machinery Co., Ltd will keep pace with the tide and focus on improving technologies, thereby creating and manufacturing products that better suit the needs of customers. We aim to lead the market trends one day.

Product Description

Pet Molding Machine for 5gallon PET bottle

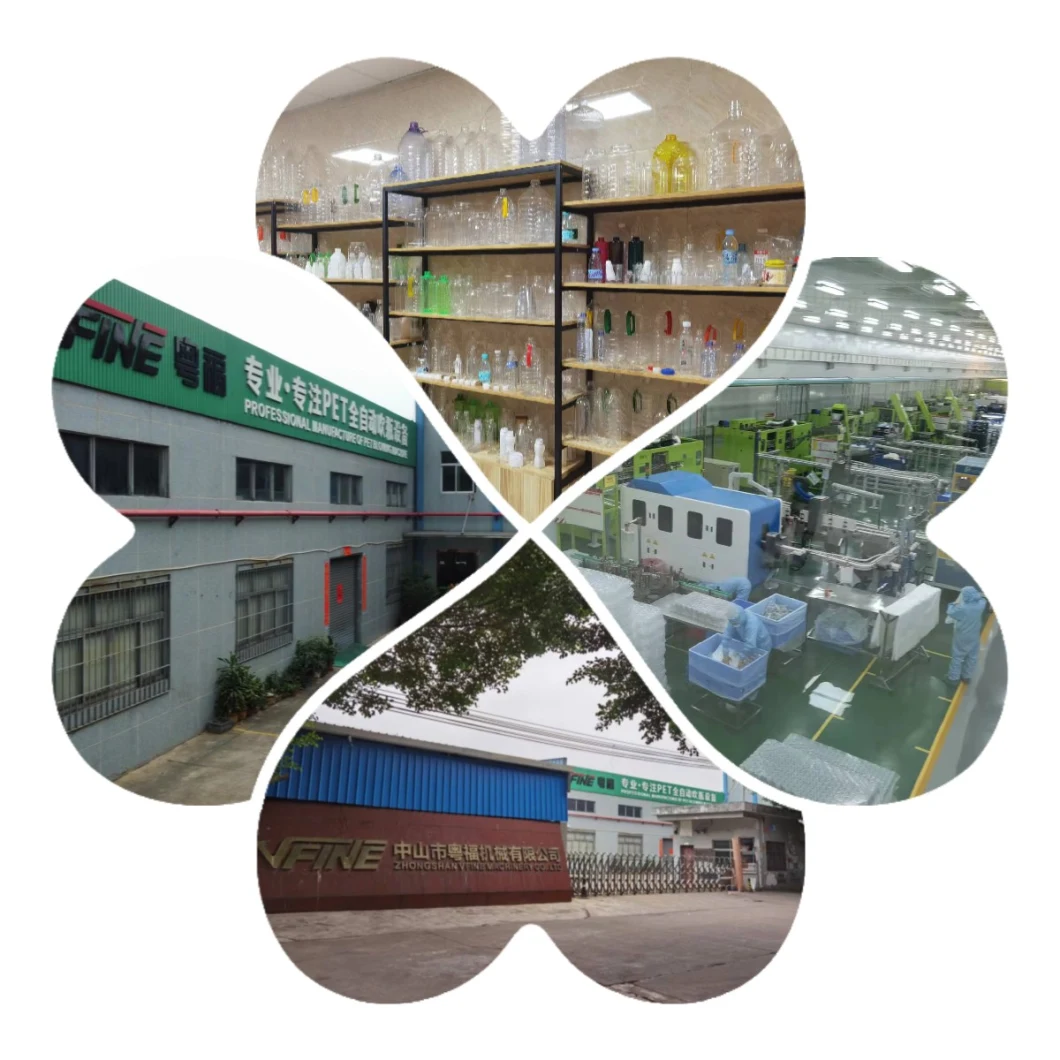

about vfine / Chumful

•Zhongshan chumful machinery co ltd is the one branch of Zhongshan Vfine machinery co ltd, which is a professional manufacturer of PET bottle blowing machines, that integrates the R&D, production, and sales. Since the development and design of the first generation linear automatic stretch blow molding machine, Vfine's technical team has focused in the PET market for 20 years. We've successfully supplied machines to many world-famous brands.

(1)Vfine blowing machine YF-L2GLE
2-cavity, linear stretch blowing molding machine
Output: 1100-1500bph
Max. Volume: 20L


(2)application scope
Suitable for producing PET water bottle, carbonate bottle, middle temperature filling bottle etc.


(3)advantage of L-series Vfine blowing machine

1. save energy :

The preform heating and blowing are on separated section, so that it can save the waiting time of each unit. The preforms are heated intensively, as the rotary machine heating type, improve the heating efficiency. Meanwhile, the high pressure air can saved by air recycling system, for the pre-blow or low pressure air supply, save energy.

1. Save space:

The infeeding system is inside the machine, the heating structure save the preform pitch distance, save the space.

1. high efficiency:

We improve about 20% output, in the situation of low down the machine energy consumption, improve the overall energy utilization.

1.  Infeeding system:

The infeeding system is in single channel with less sensors for better infeeding.

1. Heating system:

Preforms are heated intensively, the cooling device and the cross ventilation protect the preform neck from out of shape, improve the energy utilization, and heating efficiency.

1. Transfer unit: The variable pitch device is controlled by servo for stable and accurate transferring.

2. Clamping unit: The clamping unit is controlled by servo motor to ensure the synchronization, stable running and precise location.

3. High pressure air recycle system:  The high pressure air recycle system save the high pressure to the tank, reduce the noise and save energy lost.

(4) Vfine blowing machine YF-L2GLE specifications

MODEL	YF-L2GLE
Max Bottle Volumn	20L
Cavity number	2
output	1100-1500BPH
Machine size	5700*2000*3100
Machine weight	8000kg

(5) Shipment for vfine blowing machine

Q&A
Q: is the blowing machine suitable for CSD bottle
A: yes, the machine is available for water bottle, edible oil bottle, csd bottle, medicine bottle, wine bottle, etc

Q: is the blowing machine full electrical
A: the machine is control by full servo for all units, no need prepare low pressure air  for the blowing machine

Q: is the blowing machine available for different bottle mold
A: yes, the machine is designed with very easy bottle mold change unit, only need 30minutes to change a mold

Pet Molding Machine for 5gallon PET bottle
ZHONGSHAN VFINE MACHINERY CO LTD
ZHONGSHAN Chumful MACHINERY CO LTD
