Advanced Piston Screw Air Compressor System for Laser Cutting
Product features
This advanced Catair Piston Screw Air Compressor System for Laser Cutting Machine Air Supply, offered by industrial air compressor manufacturers, is equipped with a powerful 11KW motor and 2-stage piston type air cooled compressor, ensuring high pressure and efficiency for laser cutting applications. The system includes a high pressure tank, air dryer, pre-filter, post-filter, and precise filter to provide clean and dry compressed air for optimal performance. With a compact and open type structure, this system is designed to meet the needs of users in the field of laser cutting technology, offering high-end technologies for efficient manufacturing processes.
Company profile
Our company specializes in providing advanced piston screw air compressor systems for various industrial applications, specifically designed for laser cutting processes. With a strong focus on quality and performance, our systems offer reliable and efficient operation to support smooth and precise laser cutting operations. We are committed to delivering innovative solutions that meet the evolving needs of our customers and provide exceptional value through our products. Backed by a team of experienced professionals, we ensure top-notch customer service and technical support to guarantee the success of our clients' operations. Trust us for all your air compressor needs.
Enterprise core strength
Our company is a leading provider of advanced piston screw air compressor systems specifically designed for laser cutting applications. With a strong commitment to innovation and customer satisfaction, we strive to deliver high-quality products that meet the exacting needs of our clients. Our team of experts has years of experience in the industry and is dedicated to providing top-notch service and support. We take pride in offering cutting-edge technology that ensures maximum efficiency and reliability for our customers. Trust us to provide you with the best solutions for your laser cutting needs.
Zhongshan Vfine Machinery Co., Ltd relying on years of development, it clearly understands the needs of users and the pain points of the industry, and relying on strong technical capabilities to develop high-quality Catair Piston Screw Air Compressor System for Laser Cutting Machine Air Supply Ca-11tk Ca 1.2-30h Ca15tk Cat-1.0/30kg All in One Price Made in China for Sale that can meet the needs of users and solve the pain points of the industry. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Reciprocating Compressor,Catair Piston Screw Air Compressor System for Laser Cutting Machine Air Supply Ca-11tk Ca 1.2-30h Ca15tk Cat-1.0/30kg All in One Price Made in China for Sale is widely accepted by users. Zhongshan Vfine Machinery Co., Ltd adhere to the corporate spirit of 'pragmatism & innovation' and aim to create benefits for our stakeholders. Driven by the fierce competition in the market, Zhongshan Vfine Machinery Co., Ltd hold a firm belief that we must focus on R&D and develop new technologies to adapt to the market trends.
| Model NO. | CA-11TK | Cooling System | Air Cooling |
| Cylinder Arrangement | Balanced Opposed Arrangement | Cylinder Position | Angular |
| Structure Type | Open Type | Compress Level | Multistage |
| Refrigerant Type | Ammonia | Product | Air Compressor System |
| Transport Package | Wooden Package | Specification | 2T |
| Trademark | vfine | Origin | China |
| HS Code | 8414100090 | Production Capacity | 100sets/Year |
Product Description
Specifications
machine:air compressor
2stage piston type air cooled compressor
High pressure part(source air)
Specifications
machine:air compressor
2stage piston type air cooled compressor
High pressure part(source air)
Specification
| power | HP | 11KW |
| capacity | m3/min | 1.08 |
| Inlet air temp. | ºC | ≤35 |
| Exhaust air temp. | ºC | ≤60 (after cooling) |
| Full load air pressure | Mpa | 1.55 |
| voltage | V/Hz/Ph | 380/50/3 |
| Cooling way | Air type | |
| motor | IP54 | |
| Insulation level | F Level | |
| Motor quantity | set | 1 |
| Machine size | Mm | 1730*780*1850 |

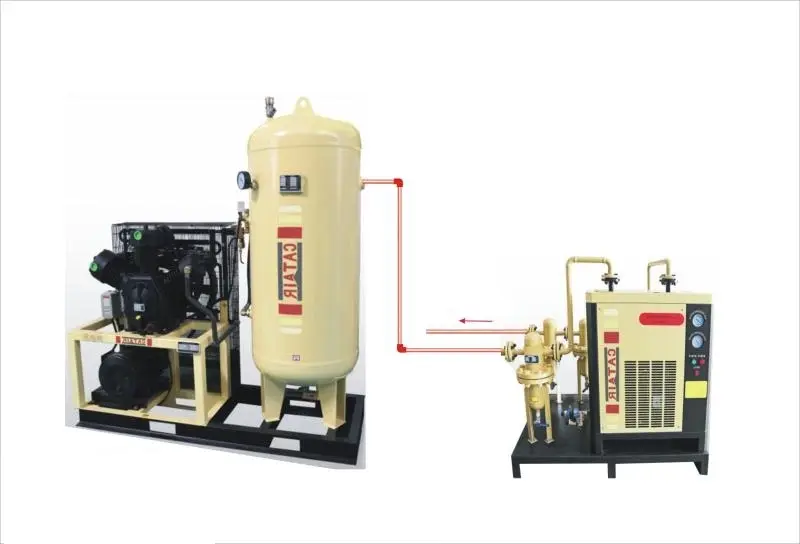

High pressure part(source air)
| item | Description and suggestion |
| Air compressor Air pressure:1.55Mpa | Produce the high pressure air |
| tank Air pressure:1.6 Mpa | Storage of the high pressure air, also as the buffer to cool the hot air; the water and dirt would be left in tank, so that to reduce load of air treatment system. |
| High pressure air dryer Air pressure:1.6Mpa | The oil and water within the compress air would be cooled to liquid status, the solid dirt together with the cold liquid will be exhausted out from the automatic drain, then the clean air can be provide to the production line. |
| Pre-filter Air pressure:1.6Mpa solid≤3 um Oil left≤5ppm | Clean the big solid dirt in the compress air. |
| Post filter Air pressure:1.6Mpa solid≤1 um Oil left≤1ppm | Clean the medium size solid dirt in the compress air |
| Precise filter Air pressure:1.6Mpa solid≤0.01 um Oil left≤0.01ppm | Clean all the solid dirt in the compress air |
Specifications
machine:air compressor
Model:CA-11TK
Specification
| power | HP | 11KW |
| capacity | m3/min | 1.08 |
| Inlet air temp. | ºC | ≤35 |
| Exhaust air temp. | ºC | ≤60 (after cooling) |
| Full load air pressure | Mpa | 1.55 |
| voltage | V/Hz/Ph | 380/50/3 |
| Cooling way | Air type | |
| motor | IP54 | |
| Insulation level | F Level | |
| Motor quantity | set | 1 |
| Machine size | Mm | 1730*780*1850 |
Tank specifications
| capacity | M3/min | 0.4 |
| Max. air pressure | Mpa | 1.6 |
| Max air temp. inlet | ºC | <100 |
| Size L*W*H | Mm | |
| Max workshop temp. | ºC | 38 |
Air treatment system
1, dryer
Model: 2m3/1.6Mpa
specification
| capacity | 2Nm3/min | |
| Max inlet pressure | 1.6Mpa | |
| Inlet temp. | ≤80ºC | |
| Dew point | 10-15ºC | |
| Environment temp. | <46ºC | |
| Recycle water | ||
| coolant | R22 | |
| power | 0.8kw | |
| Cooling type | Air type | |
| Inlet Water pressure | ||
| Inlet water | ||
| Coolant compressor | Japan | Panasonic |
| drain | vavle | 3pc Netherlands valve |
| power | 220V/50Hz | |

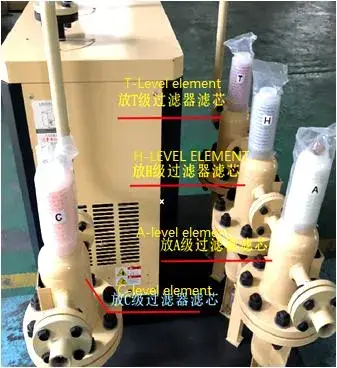

Pre-filter
| capacity | 2.0m3/min |
| Max inlet pressure | 1.6MPa |
| Inlet temp. | ≤60ºC |
| Environment temp. | ≤45ºC |
| Filter precision | ≤3μm |
| Oil in Outlet air | 5ppm (w) |
| Pressure drop | dry drop ≤0.007MPa, wet drop ≤ 0.014MPa |
| Filter element | 6000-8000hour |
| structure | Filter element |
| connector | DN20 threaded fittings |
| drain | Drain includes, exhaust automaticly |
(2)post-filter
| capacity | 2.0m3/min |
| Max inlet pressure | 1.6MPa |
| Inlet temp. | ≤60ºC |
| Environment temp. | ≤45ºC |
| Filter precision | ≤1μm |
| Oil in Outlet air | 1ppm (w) |
| Pressure drop | dry drop ≤0.007MPa,wet drop ≤ 0.014MPa |
| Filter element | 6000-8000h |
| structure | Filter element |
| drain | Drain includes, exhaust automaticly |
| connector | DN20 threaded fittings |
(3)precise filter
| capacity | 2.0m3/min |
| Max inlet pressure | 1.6MPa |
| Inlet temp. | ≤60ºC |
| Environment temp. | ≤45ºC |
| Filter precision | ≤0.01μm |
| Oil in Outlet air | 0.01ppm (w) |
| Pressure drop | dry drop ≤0.007MPa,wet drop ≤ 0.014MPa |
| Filter element | 6000-8000h |
| structure | Filter element |
| drain | Drain includes, exhaust automaticly |
| connector | DN20 threaded fittings |
Compressor, motor, V-belt with cover, exhaust valve, manual water drain, gauge
Specifications
machine:air compressor
Model:CA-11TK
Specification
| power | HP | 11KW |
| capacity | m3/min | 1.08 |
| Inlet air temp. | ºC | ≤35 |
| Exhaust air temp. | ºC | ≤60 (after cooling) |
| Full load air pressure | Mpa | 1.55 |
| voltage | V/Hz/Ph | 380/50/3 |
| Cooling way | Air type | |
| motor | IP54 | |
| Insulation level | F Level | |
| Motor quantity | set | 1 |
| Machine size | Mm | 1730*780*1850 |

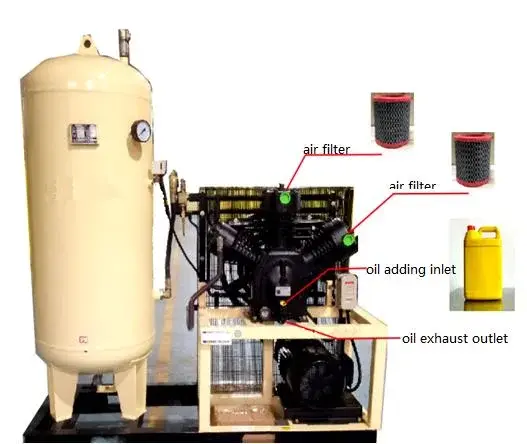

The compressor includes one set 11kw piston by following components:
Compressor, motor, V-belt with cover, exhaust valve, manual water drain, gauge
