VFINE - Oil Free Air Compressor System for Pet Bottle Blowing AIR COMPRESSOR FOR PET BOTTLE

Zhongshan Vfine Machinery Co., Ltd still remembered the time when we successfully developed the new product - Oil Free Air Compressor System for Pet Bottle Blowing. The product is absolutely new and has something different in it. Different from other products,Oil Free Air Compressor System for Pet Bottle Blowing really solves the pain points of customers, so as soon as they were launched on the market, they received many good feedbacks. Our expertise and technologies enable tailor-made solutions for every customer.

Product Description

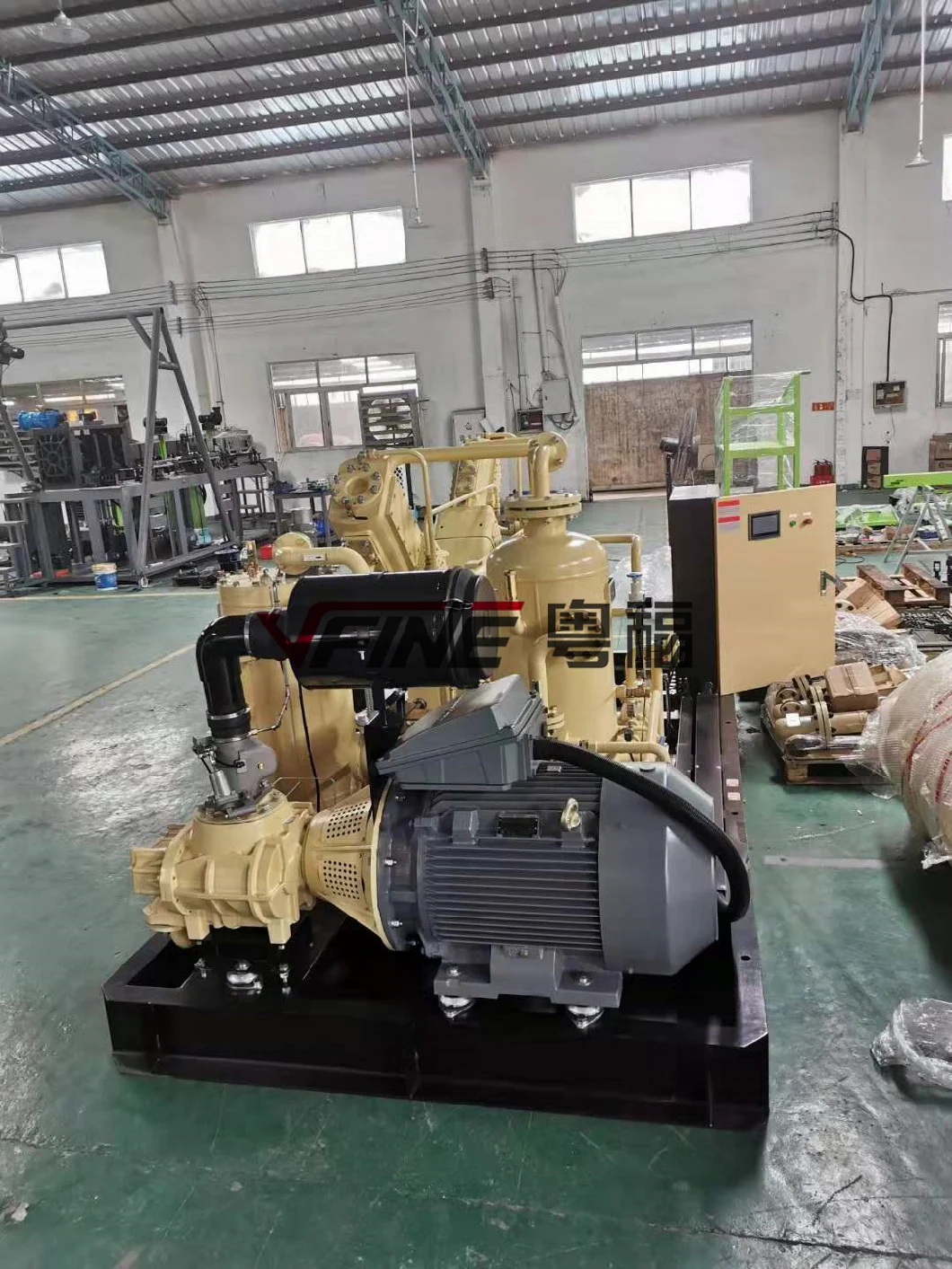

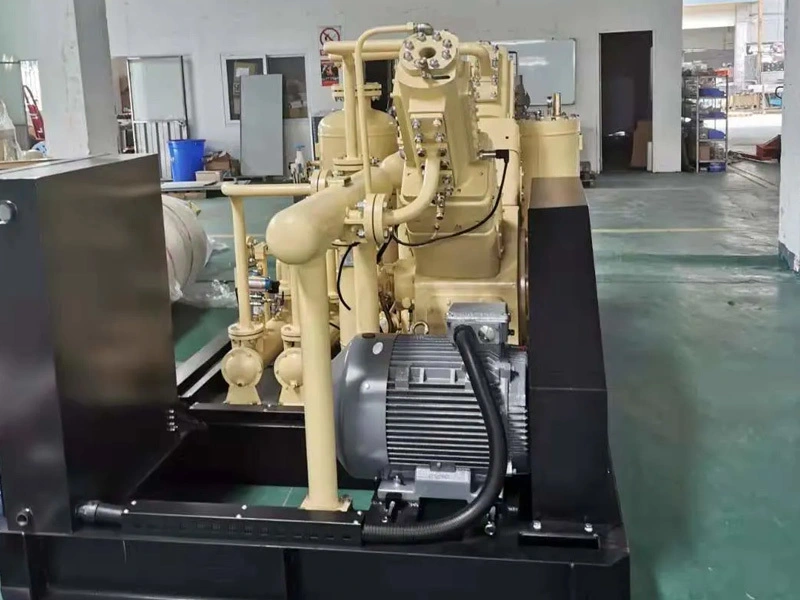

oil free air compressor system for PET bottle blowing


item	Description and suggestion
Air compressor Air pressure:4.0Mpa	Produce the high pressure air
tank Air pressure:4.0Mpa	Storage of the high pressure air, also as the buffer to cool the hot air; the water and dirt would be left in tank, so that to reduce load of air treatment system.
High pressure air dryer Air pressure:4.0Mpa	The oil and water within the compress air would be cooled to liquid status, the solid dirt together with the cold liquid will be exhausted out from the automatic drain, then the clean air can be provide to the production line.
Pre-filter Air pressure:4.0Mpa solid≤3 um Oil left≤5ppm	Clean the big solid dirt in the compress air.
Post filter Air pressure:4.0Mpa solid≤1 um Oil left≤1ppm	Clean the medium size solid dirt in the compress air
Precise filter Air pressure:4.0Mpa solid≤0.01 um Oil left≤0.01ppm	Clean all the solid dirt in the compress air
Carton filter Air pressure:4.0Mpa solid≤0.01 um Oil left≤0.003ppm	Clean the smell and dirt in the compress air

Advantage of the oil free air compressor system

item	description
Save energy	The water-cooling type oil free air compressor is the most functional, energy-saving compressor, the compressor air capacity can auto-adjust range from 1/4 to full loading.   Eg: the 12m3/min is adjusted from 3-12m3, the starting current is 15A, it can save 80%-90% energy. After start, the half- frequency idle, can save 50% energy. When the air reachesl the setting air pressure, the machine is in half- frequency idle model, if the machine is in long time idle model, the machine will stop automatic, save 100% energy.
Low rotating speed	The rotating speed is only 390-580, ensure the run stale with very small vibration, low abrasion, low noise, It can keep the life of piston ring and valve longer.
Simplify the structure, and make the maintenance easier	In the first stage, the operation is drop from up to down by free fall, this can save the energy cost, normally the first stage would consume 45% energy of the complete machine, free fall design can reduce the abrasion of the piston ring, lengthen the spare part life time.
	The machine is design in L structure, the third stage is without piston filler, it is very helpful for high pressure air sea, and very convenient for maintenance
	The system equipment is combined in one pallet, simplify the installation, no need special foundation.
	The air compressor is in three stages compress, ensure stable running, easy maintenance and low down the maintenance cost.
material	The whole piping inside the compressor system is with stainless steel in S304.No rust powder inside the whole system, that is great protect for the food and beverage industry.
Temperature control	The first stage compress air in cool temperature, it is cooled by 3-4kg cool water. We need to stable the second stage cylinder temperature, to make sure the cylinder temperature is same with the air, to protect the forming of condensate. The third stage temperature is with oil cooling, so lengthen the piston life time.

specifications
model:HLW-25/40

item		description
model		HLW-12/40
type		Water-cooling L type piston 3cylinder 3stage compressor
Compress material		air
capacity	m3/min	12(input air Capacity)
pressure	Mpa	0.1(A)
temperature	ºC	≤40
pressure	Mpa	4.0
Installation power	KW	132
noise	dB(A)	75
voltage	V/Ph/Hz	380/3/50
Cooling type		Water cooling
Output Air temperature	ºC	≤ 150(before cooling)  ≤ 60(after cooling)
Lubricating oil temperature	ºC	≤ 60
Lubricating way		gear pump pressuring lubrication
Motor protecting level		IP54
Impact level	mm	≤28
Crankshaft rotate speed	r/min	580
Output outlet diameter		1.5"
Cooling outlet diameter		1.5"
Inlet water temperature	ºC	10-32
Output water temperate	ºC	15-37
Cooling tower	T/h	30
Machine size	mm	4050*1750*2380
weight	kg	6000



Installation Instructions

We have a professtional after-sale service team, before machine arrive, we will give consulting service about the machine place, eletricity, and water prepare works. after machine arrive in customer factory, we also send engineer for installation, and make training for customer's engineer, customer should take charge of the engineer travel cost, board and lodging and labor cost.

Company Profile

Zhongshan chumful machinery co ltd is the one branch of Zhongshan Vfine machinery co ltd, which is a professional manufacturer of PET bottle blowing machines, that integrates the R&D, production, and sales. We also provide turkey project service of water bottle complete line.Since the development and design of the first generation linear automatic stretch blow molding machine, Vfine's technical team has focused in the PET market for 20 years. We've successfully supplied machines to many world-famous brands.
Not only blow machine, we also provide turnkey project service of pet bottle design, PET bottling equipment line, PET bottle filling, and packing.



FAQ

Q10: is the blowing machine suitable for 3L bottle
A: yes, the machine is available for 3L-10L water bottle, edible oil bottle, etc

Q11: is the blowing machine full electrical
A: the machine is control by full servo for all units, no need prepare low pressure air  for the blowing machine

Q12: is the blowing machine available for different bottle mold
A: yes, the machine is designed with very easy bottle mold change unit, only need 30minutes to change a mold

reference & certifications
