Oil Free Air Compressor System for Pet Bottle Blowing with High Performance
Product features
The portable high pressure air compressor by Zhongshan Vfine Machinery Co., Ltd offers an oil-free system perfect for PET bottle blowing. With a cooling system, single screw compressor, and a range of filters, this system ensures clean, high pressure air for production. Its energy-saving design, low rotating speed, and stainless steel material make it a reliable and efficient choice for the food and beverage industry.
Company profile
With specialized expertise in manufacturing high-performance oil-free air compressor systems for pet bottle blowing, our company prides itself on delivering top-notch products to meet the demanding needs of our customers. Our commitment to quality, reliability, and innovation sets us apart in the market, ensuring optimal performance and efficiency. With a focus on sustainability and customer satisfaction, we strive to exceed expectations and provide a superior solution for all your compressed air needs. Trust in our experience and dedication to excellence as we continue to lead the industry with cutting-edge technology and unparalleled service.
Why choose us
With a commitment to innovation and quality, our company is a leading manufacturer of oil-free air compressor systems for pet bottle blowing applications. Our high-performance systems are designed to meet the specific requirements of the bottling industry, ensuring reliable and efficient operation. We pride ourselves on our dedication to customer satisfaction, offering exceptional service and support to businesses of all sizes. With a focus on sustainability and energy efficiency, our products are not only cost-effective but also environmentally friendly. Trust our company to provide the reliable and high-quality air compressor solutions you need for your pet bottle blowing operations.
Zhongshan Vfine Machinery Co., Ltd still remembered the time when we successfully developed the new product - Oil Free Air Compressor System for Pet Bottle Blowing. The product is absolutely new and has something different in it. Different from other products,Oil Free Air Compressor System for Pet Bottle Blowing really solves the pain points of customers, so as soon as they were launched on the market, they received many good feedbacks. Our expertise and technologies enable tailor-made solutions for every customer.
| Model NO. | 15CBM/MIN/40BAR | Cooling System | Water Cooling |
| Power Source | AC Power | Cylinder Position | Angular |
| Structure Type | Semi-Closed Type | Installation Type | Stationary Type |
| Type | Single Screw Compressor | Product | Air Compressor System |
| Transport Package | Wooden Box | Specification | 3package |
| Trademark | vfine | Origin | China Guangzhou |
| HS Code | 8477109000 | Production Capacity | 100set/Year |
| Package size per unit product | 190.00cm * 100.00cm * 130.00cm | Gross weight per unit product | 3000.000kg |
Product Description

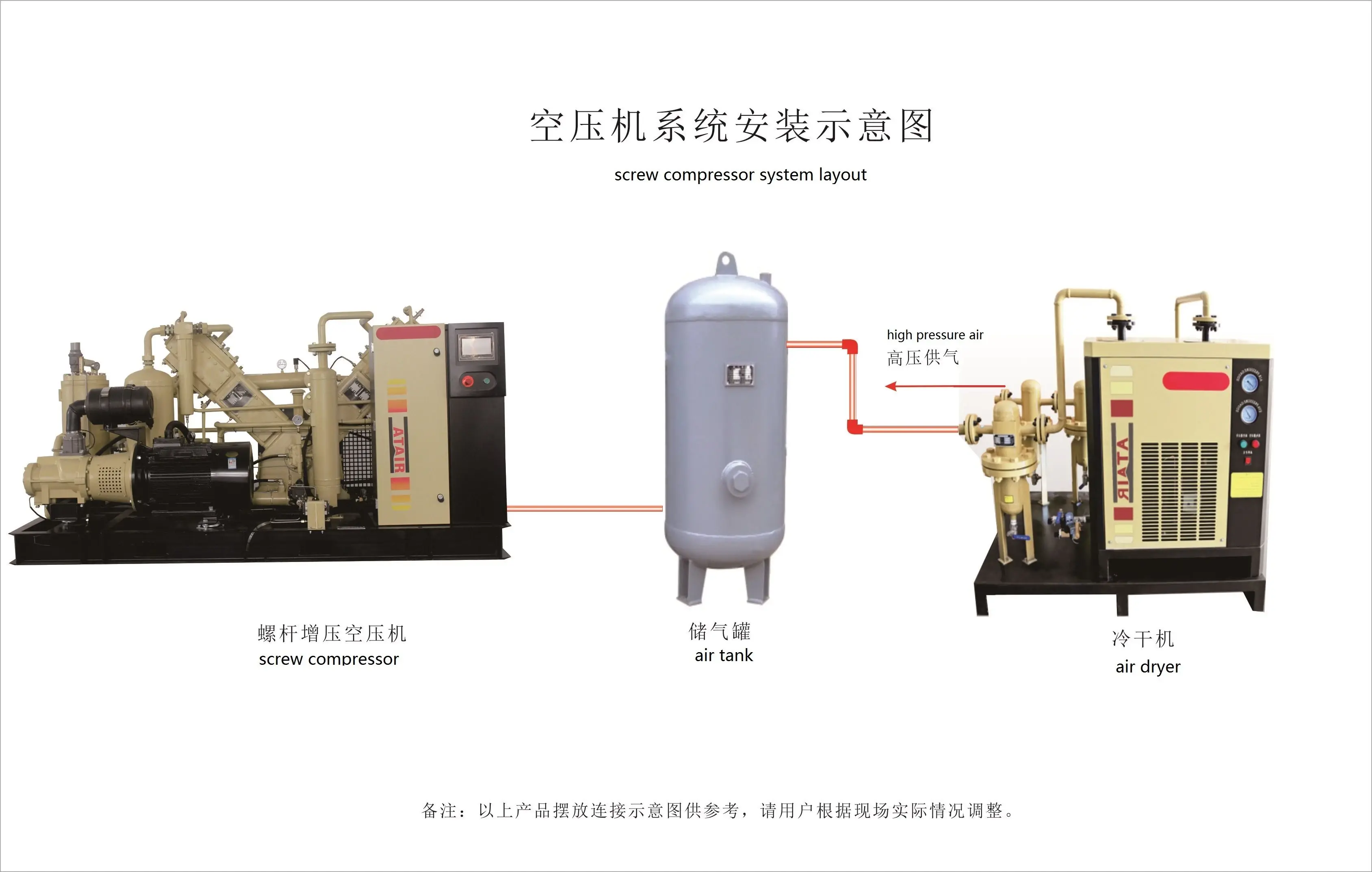

| item | Description and suggestion |
| Air compressor Air pressure:4.0Mpa | Produce the high pressure air |
| tank Air pressure:4.0Mpa | Storage of the high pressure air, also as the buffer to cool the hot air; the water and dirt would be left in tank, so that to reduce load of air treatment system. |
| High pressure air dryer Air pressure:4.0Mpa | The oil and water within the compress air would be cooled to liquid status, the solid dirt together with the cold liquid will be exhausted out from the automatic drain, then the clean air can be provide to the production line. |
| Pre-filter Air pressure:4.0Mpa solid≤3 um Oil left≤5ppm | Clean the big solid dirt in the compress air. |
| Post filter Air pressure:4.0Mpa solid≤1 um Oil left≤1ppm | Clean the medium size solid dirt in the compress air |
| Precise filter Air pressure:4.0Mpa solid≤0.01 um Oil left≤0.01ppm | Clean all the solid dirt in the compress air |
| Carton filter Air pressure:4.0Mpa solid≤0.01 um Oil left≤0.003ppm | Clean the smell and dirt in the compress air |
Advantage of the oil free air compressor system
| item | description |
| Save energy | The water-cooling type oil free air compressor is the most functional, energy-saving compressor, the compressor air capacity can auto-adjust range from 1/4 to full loading. Eg: the 12m3/min is adjusted from 3-12m3, the starting current is 15A, it can save 80%-90% energy. After start, the half- frequency idle, can save 50% energy. When the air reachesl the setting air pressure, the machine is in half- frequency idle model, if the machine is in long time idle model, the machine will stop automatic, save 100% energy. |
| Low rotating speed | The rotating speed is only 390-580, ensure the run stale with very small vibration, low abrasion, low noise, It can keep the life of piston ring and valve longer. |
Simplify the structure, and make the maintenance easier | In the first stage, the operation is drop from up to down by free fall, this can save the energy cost, normally the first stage would consume 45% energy of the complete machine, free fall design can reduce the abrasion of the piston ring, lengthen the spare part life time. |
| The machine is design in L structure, the third stage is without piston filler, it is very helpful for high pressure air sea, and very convenient for maintenance | |
| The system equipment is combined in one pallet, simplify the installation, no need special foundation. | |
| The air compressor is in three stages compress, ensure stable running, easy maintenance and low down the maintenance cost. | |
material | The whole piping inside the compressor system is with stainless steel in S304.No rust powder inside the whole system, that is great protect for the food and beverage industry. |
| Temperature control | The first stage compress air in cool temperature, it is cooled by 3-4kg cool water. We need to stable the second stage cylinder temperature, to make sure the cylinder temperature is same with the air, to protect the forming of condensate. The third stage temperature is with oil cooling, so lengthen the piston life time. |
model:HLW-25/40
| item | description | |
| model | HLW-12/40 | |
| type | Water-cooling L type piston 3cylinder 3stage compressor | |
| Compress material | air | |
| capacity | m3/min | 12(input air Capacity) |
| pressure | Mpa | 0.1(A) |
| temperature | ºC | ≤40 |
| pressure | Mpa | 4.0 |
| Installation power | KW | 132 |
| noise | dB(A) | 75 |
| voltage | V/Ph/Hz | 380/3/50 |
| Cooling type | Water cooling | |
| Output Air temperature | ºC | ≤ 150(before cooling) ≤ 60(after cooling) |
| Lubricating oil temperature | ºC | ≤ 60 |
| Lubricating way | gear pump pressuring lubrication | |
| Motor protecting level | IP54 | |
| Impact level | mm | ≤28 |
| Crankshaft rotate speed | r/min | 580 |
| Output outlet diameter | 1.5" | |
| Cooling outlet diameter | 1.5" | |
| Inlet water temperature | ºC | 10-32 |
| Output water temperate | ºC | 15-37 |
| Cooling tower | T/h | 30 |
| Machine size | mm | 4050*1750*2380 |
| weight | kg | 6000 |
We have a professtional after-sale service team, before machine arrive, we will give consulting service about the machine place, eletricity, and water prepare works. after machine arrive in customer factory, we also send engineer for installation, and make training for customer's engineer, customer should take charge of the engineer travel cost, board and lodging and labor cost.
Not only blow machine, we also provide turnkey project service of pet bottle design, PET bottling equipment line, PET bottle filling, and packing.
A: yes, the machine is available for 3L-10L water bottle, edible oil bottle, etc
Q11: is the blowing machine full electrical
A: the machine is control by full servo for all units, no need prepare low pressure air for the blowing machine
Q12: is the blowing machine available for different bottle mold
A: yes, the machine is designed with very easy bottle mold change unit, only need 30minutes to change a mold
