Have you ever wondered how those plastic bottles that you see everywhere are made? It's not just a simple process of pouring liquid into a mold and letting it set, but rather a complex and fascinating operation that involves specialized machinery. One key piece of equipment in the production of plastic bottles is the bottle blowing machine. In this article, we will explore how a bottle blowing machine operates, from start to finish.
The basics of a bottle blowing machine

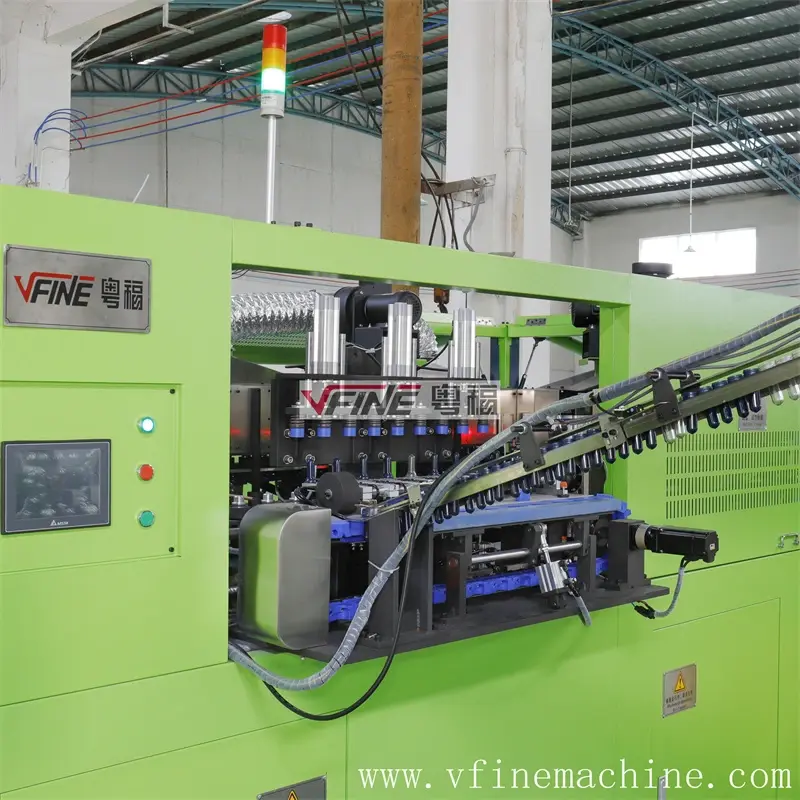

A bottle blowing machine, also known as a blow molding machine, is a piece of equipment used to manufacture plastic bottles. The process begins with plastic resin pellets, which are melted down and formed into a parison, or a hollow tube of molten plastic. The parison is then transferred to a mold, where it is inflated to take the shape of the mold cavity. Once the plastic has cooled and solidified, the mold opens, and the finished bottle is ejected.
The bottle blowing machine consists of several key components, including the extruder, the mold, the clamping unit, and the blow unit. Each of these components plays a critical role in the bottle blowing process, and it is the coordinated operation of these components that allows the machine to produce high-quality plastic bottles.
The extruder
The extruder is the first component in the bottle blowing machine, and it is responsible for melting down the plastic resin pellets and forming them into a parison. The extruder consists of a heated barrel with a rotating screw inside. The plastic resin pellets are fed into the barrel, where they are gradually heated and compressed by the rotating screw. This process melts the pellets and forms them into a continuous, molten tube of plastic.
As the molten plastic is pushed through the extruder, it is shaped into a parison of the desired length and wall thickness. The size and shape of the parison can be adjusted by changing the speed of the screw and the temperature of the barrel, allowing for flexibility in the production of different types of bottles.
Once the parison has been formed, it is ready to be transferred to the mold for the next stage of the bottle blowing process.
The mold
The mold is where the magic happens in the bottle blowing process. It is a two-part, hollow metal container that is designed to give the parison its final shape and size. The mold is divided into two halves, with each half containing a cavity that corresponds to the shape of the finished bottle.
Once the parison has been formed, it is transferred to the mold, where the two halves are clamped together. The parison is then inflated with compressed air, causing it to expand and take the shape of the mold cavity. The mold is designed to cool the plastic quickly and evenly, ensuring that the finished bottle has a consistent wall thickness and a smooth, uniform appearance.
After the plastic has cooled and solidified, the mold opens, and the finished bottle is ejected. The mold then closes again, ready for the next parison to be transferred and the process to begin again.
The clamping unit
The clamping unit is responsible for holding the mold closed while the parison is inflated and the plastic cools. It consists of a series of hydraulic or mechanical clamps that hold the two halves of the mold together with a precise amount of pressure.
The clamping unit must apply enough force to keep the mold closed during the inflation of the parison, but not so much force that it distorts the shape of the finished bottle. The clamps are carefully calibrated to ensure that the mold remains securely closed throughout the entire bottle blowing process.
In addition to holding the mold closed, the clamping unit also provides the mechanism for opening and closing the mold, as well as ejecting the finished bottle. This is typically done using a hydraulic system that can exert the necessary force while maintaining precise control over the movement of the mold.
The blow unit
The blow unit is responsible for inflating the parison and shaping it to the contours of the mold. It consists of a system of valves, hoses, and nozzles that deliver compressed air to the interior of the parison. The blow unit is carefully calibrated to ensure that the parison is inflated to the correct size and shape, with a consistent wall thickness.
The blow unit must also be able to release the pressure from the parison once it has expanded to the desired size. This is typically done using a series of valves that control the flow of compressed air into and out of the parison, allowing for precise control over the inflation process.
In addition to inflating the parison, the blow unit may also be responsible for trimming any excess plastic from the finished bottle. This can be done using a series of knives or shears that cut the plastic as the mold opens, allowing the excess material to be removed before the bottle is ejected.
Conclusion
In conclusion, a bottle blowing machine is a complex piece of equipment that plays a critical role in the production of plastic bottles. It consists of several key components, including the extruder, the mold, the clamping unit, and the blow unit, each of which plays a specific role in the bottle blowing process. By carefully coordinating the operation of these components, the bottle blowing machine is able to produce high-quality plastic bottles in a wide range of shapes and sizes, making it an essential piece of equipment in the plastics manufacturing industry. Whether you realize it or not, the plastic bottles you use every day have likely been produced with the help of a bottle blowing machine, making it an important and fascinating piece of technology.
.
